Proaim Boxer HD-2X Motorized Pan/Tilt Head for Camera Jib/Crane | Iris, Focus & Zoom Controls

Proaim Boxer HD-2X Motorized Pan/Tilt Head for Camera Jib/Crane | Payload: 15kg / 33lb

Payload: 15kg/33lb | 360˚ Pan Tilt Movements

£3,366.40 - £3,366.40
£3,366.40
£3,366.40 - £3,366.40
£3,366.40
SKU : P-BXR-HD-2X

AT A GLANCE

Payload
15kg / 33lb
Pan / Tilt Movement
360°
Best For
Cinematic Crane Shots
Remote Camera Operation
Film / Studio / Location Shoots
Smooth 2-Axis Camera Movement
Key Benefits
Precise Pan & Tilt Control
Focus, Zoom & Iris Adjustment
High-Grade CNC Aluminum Build
Smooth Motion for Cinematic Shots

Secure checkout | Fast delivery | 30-day returns | 1-year warranty




Boxer HD-2XMotorized pan/tilt head for jib cranes

Reclaim cinematic perfection & precision at your fingertips!

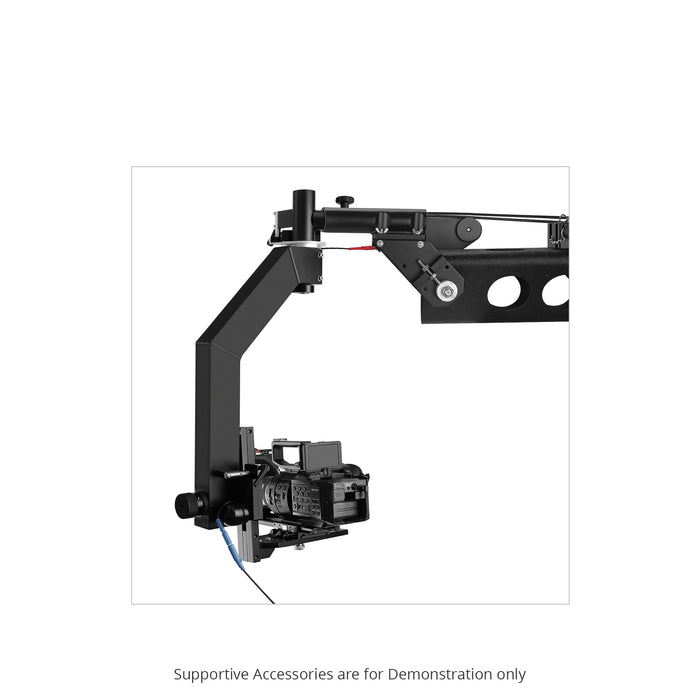

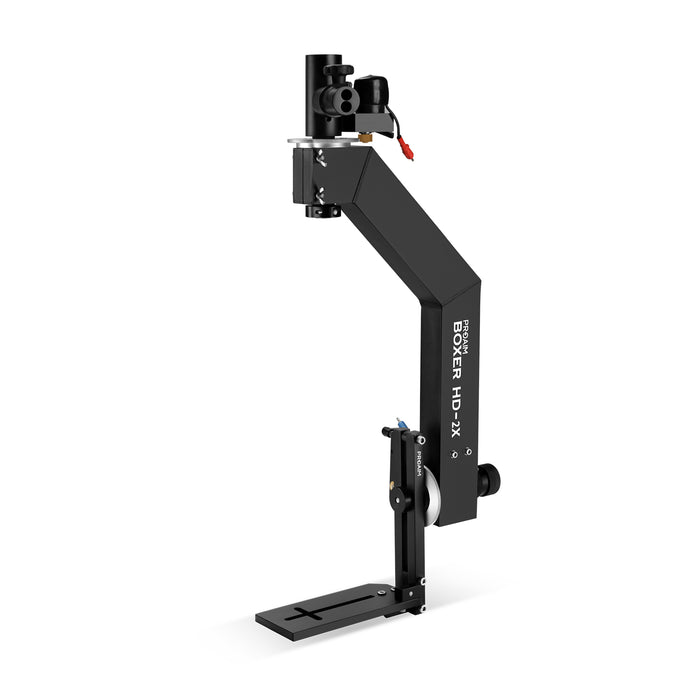

The Proaim Boxer HD-2X is a 2-axis motorized pan/tilt head for camera jibs and cranes, built tough from high-grade CNC aluminum. It lets you remotely control your camera’s pan, tilt, focus, zoom and iris with smooth, precise motion, handles camera rigs of up to 15 kg / 33 lb, and runs on a 14.8 V V-mount battery or the included 110–240 V AC adapter.

15 kgPayload (33 lb)
360°Pan & tilt
5 secFastest 360° rotation
13 mMain cable length

Proaim Boxer HD-2X

Proaim Boxer HD-2X motorized pan/tilt head

Motorized head

01High precision

High-precision cinematic shots.

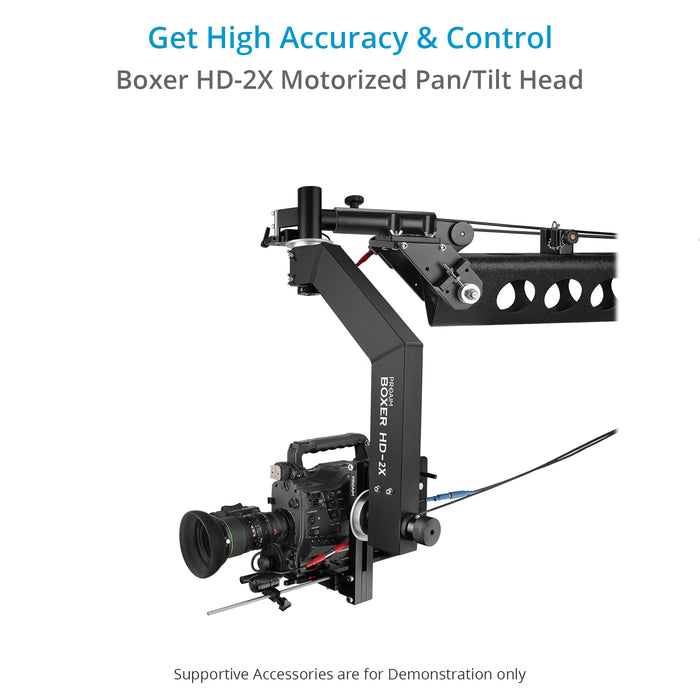

Experience high accuracy with Proaim Boxer HD-2X Motorized Pan/Tilt Head, your go-to solution for achieving those beautiful cinematic-style shots with smooth & precise motion. It is a feature-packed, powerful head that lets you remotely adjust your camera’s focus, zoom, pan, iris, and tilt, offering smooth camerawork at all times. This highly efficient 2-axis Motorized Head is built tough with High-grade CNC Aluminum construction, so it can handle even the heaviest camera rigs up to 15kg / 33lb.

15 kgCamera rigs up to 33 lb
RemoteFocus, zoom, pan, iris & tilt
CNCHigh-grade aluminum build

Proaim Boxer HD-2X

Proaim Boxer HD-2X full control kit: head, camera plate, controller box, joystick handles and cables

Control kit

02Control kit

Full-feature control kit for seamless operation.

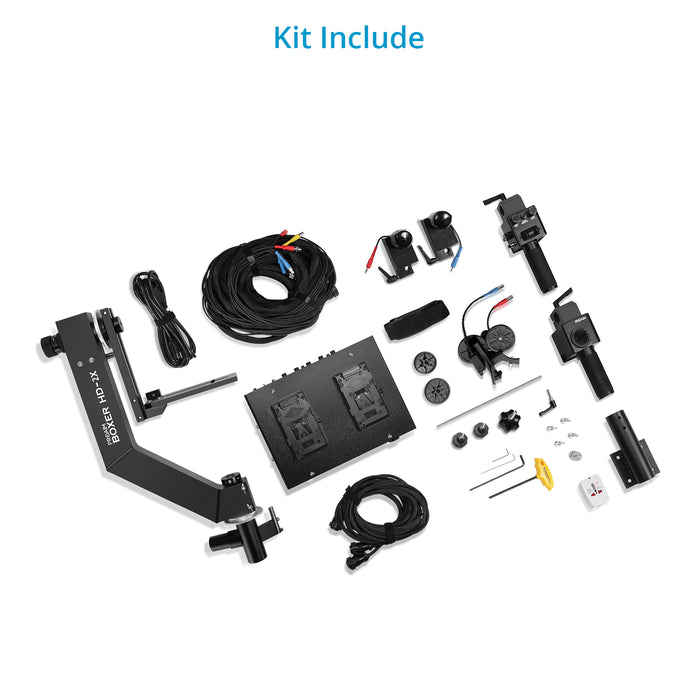

Included in the kit are a pan/tilt remote head, camera plate, power cable set, 42ft long cable run, controller box, two joystick handles, and a 12VDC power adapter. The robustly designed remote head mounts upright onto a jib/crane without the need for any tools, using a Jib knob.

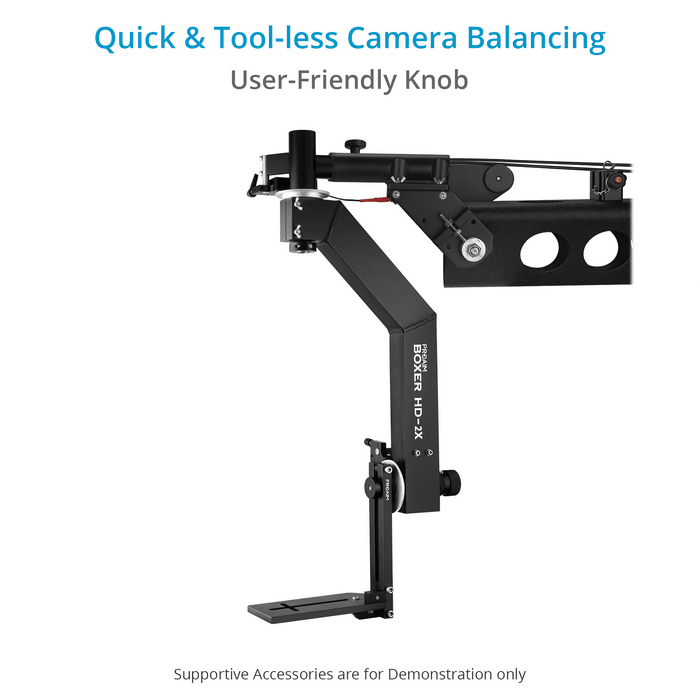

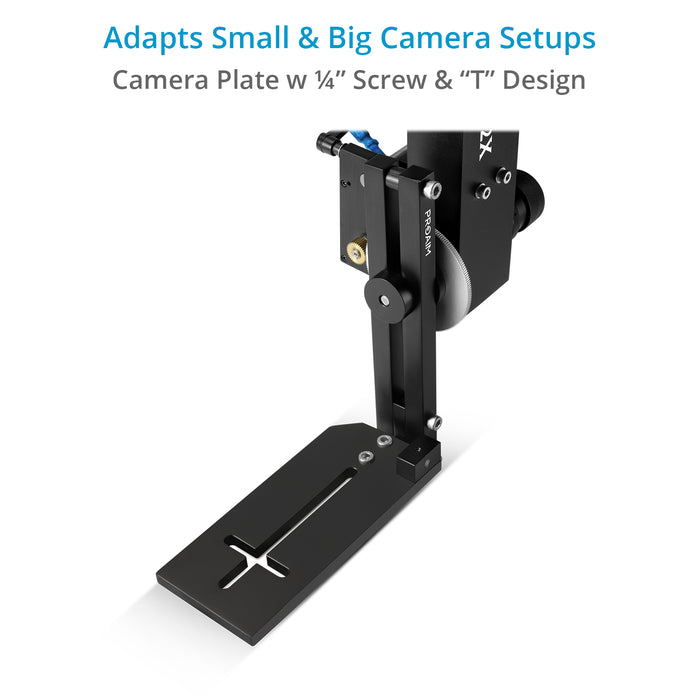

The camera plate, which boasts a ¼" camera screw and a "T" design, ensures that cameras of various sizes and setups are balanced securely. An integrated knob within the head offers effortless tool-less camera balancing. By simply rotating the knob, you can smoothly slide the plate up and down for quick adjustments.

Furthermore, two joystick controller handles with a clamping range of 25mm offer effortless control of zoom and focus rings, connected to gear motors via a 13m thick extension cable (Tyco connectors).

Tool-lessJib knob & balance knob
25 mmHandle clamping range
13 mExtension cable, Tyco connectors

Proaim Boxer HD-2X

Proaim Boxer HD-2X built-in lens control for Fuji and Canon ENG lenses

Lens control

03Lens compatibility

Lens compatibility.

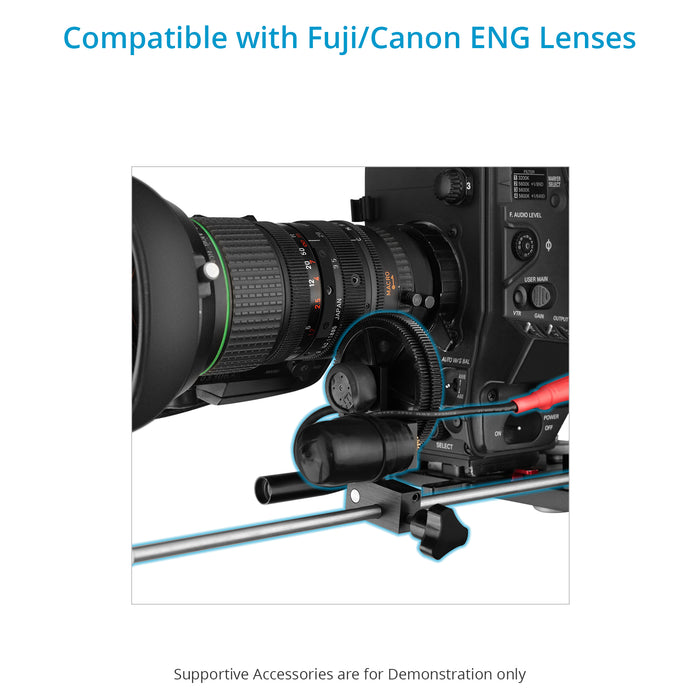

Our Boxer head comes equipped with a convenient built-in lens control for Fuji/Canon ENG lenses. It is specially designed with an 8-pin zoom cable connector that is compatible with Canon and Fujinon ENG lenses, featuring the same 8-pin connector. Additionally, there is a screw mounting option to mount the iris/focus motor assembly on the lens using a bracket.

8-pinZoom cable connector
Fuji / CanonENG lenses
BracketIris / focus motor mount

Proaim Boxer HD-2X

Proaim Boxer HD-2X power options: V-mount battery or the included AC adapter

Power

04Power

Efficient power options.

The high-performance head can be powered by either a 14.8 VDC battery pack or an included 110-240VAC adapter, ensuring optimal functionality.

14.8 VV-mount battery pack
110–240 VAC adapter, included
DualV-mount battery plate

Proaim Boxer HD-2X

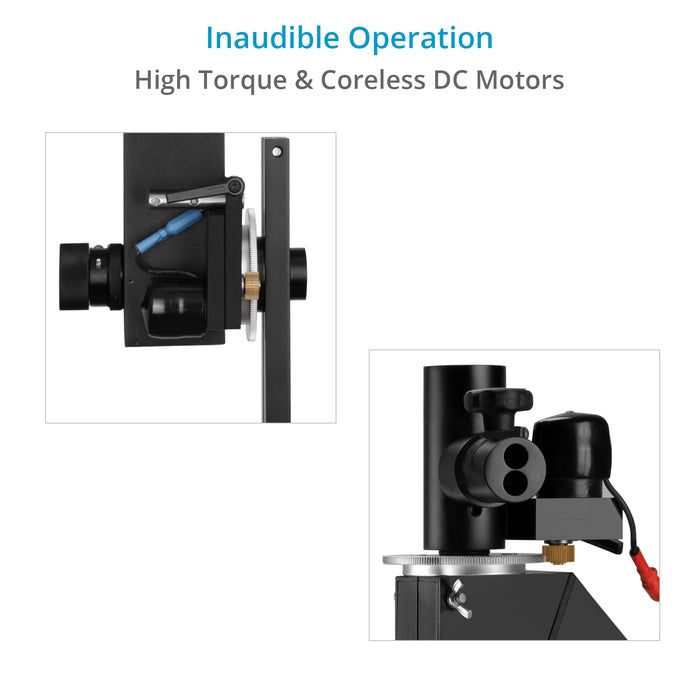

Proaim Boxer HD-2X high-torque coreless DC motors

Motors

05Motors

High-torque DC motors.

This smart and adaptive system uses two coreless high-torque DC motors that provide inaudible and precise movements with zero backlash and performance similar to top industry solutions at an affordable cost.

2Coreless high-torque DC motors
InaudiblePrecise movements
ZeroBacklash

Proaim Boxer HD-2X

Pan & tilt / In motion

06Pan & tilt

Seamless pan-tilt motion.

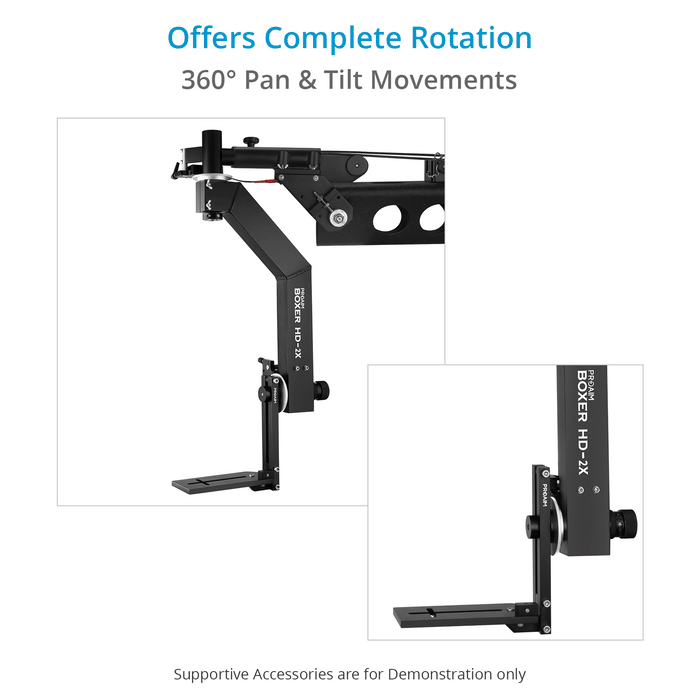

The Boxer head offers 360°+/- motion, allowing it to rotate fully from one side to the other, ensuring smooth and continuous pan-tilt movement across both horizontal and vertical axes. This versatility enables capturing multi-dimensional shots from all angles.

Our variable-speed pan and tilt motors can rotate a full 360 degrees in just 20 seconds at the slowest speed and in a speedy 5 seconds at the fastest speed. It is controlled by a variable-speed, touch-sensitive joystick remote and controller box that allows you to control pan/tilt speed, direction, power, and individual axes.

360°Pan & tilt, both axes
5 secFastest full turn
Touch-sensitiveVariable-speed joystick

Proaim Boxer HD-2X

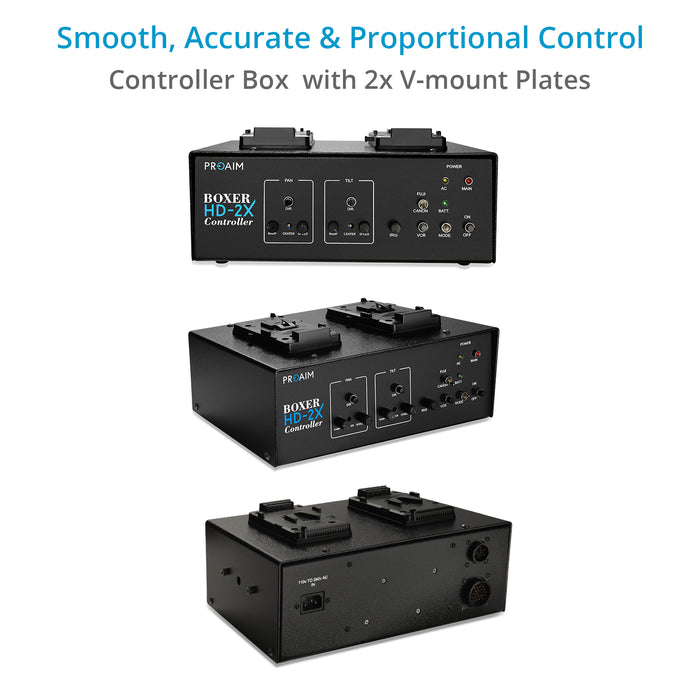

Proaim Boxer HD-2X main control box with dual V-mount battery plate

Control box

07Control box

Speed, damping, iris & direction control.

The main control box of our pan-tilt features a dual V-mount battery plate, which facilitates the convenient mounting of V-mount batteries, offering a significantly larger capacity, thereby enabling prolonged uninterrupted operation.

2Independent speed switches
2Damping switches
IrisAperture control
  1. 01

    Speed Control

    It features two independent speed controller switches that let you control and precisely adjust the speed, suiting the requirement of the shot.

  2. 02

    Damping Control

    And two independent Damping control switches prevent the head from stopping abruptly with a jerk, giving you smooth endings.

  3. 03

    Pan-Tilt Direction

    There are also two independent switches, so you can easily change and reverse the direction of panning & tilting as and when required.

  4. 04

    Iris

    With the Iris control switch, you can adjust the camera’s aperture to accommodate prevailing day/night light conditions, improving visual clarity.

Moreover, the controller box is equipped with an up/down flip knob, which must be switched when using Fuji or Canon lenses.

Proaim Boxer HD-2X

Proaim Boxer HD-2X joystick zoom controller

Zoom controller

08Zoom

Zoom control.

The Joystick Zoom Controller enables the operator to increase the magnification, empowering them to take well-framed shots with ease and reliability.

On / OffZoom speed control
RateKnob-set zoom speed
See-sawRocker for direction
  1. 01

    Zoom On/Off

    The switch works as a zoom speed controller; when switched OFF, the zoom speed is at its maximum, and when switched ON, the zoom speed can be controlled via the ‘zoom rate’ knob.

  2. 02

    Zoom Rate

    When the ‘zoom on/off’ button is on, the knob allows you to control the zoom speed per your requirement.

  3. 03

    Zoom Direction

    The button reverses the current zoom direction from zooming in to zooming out or vice-versa.

  4. 04

    See-Saw Button

    The rocker pot facilitates forward and reverse zoom direction.

Proaim Boxer HD-2X

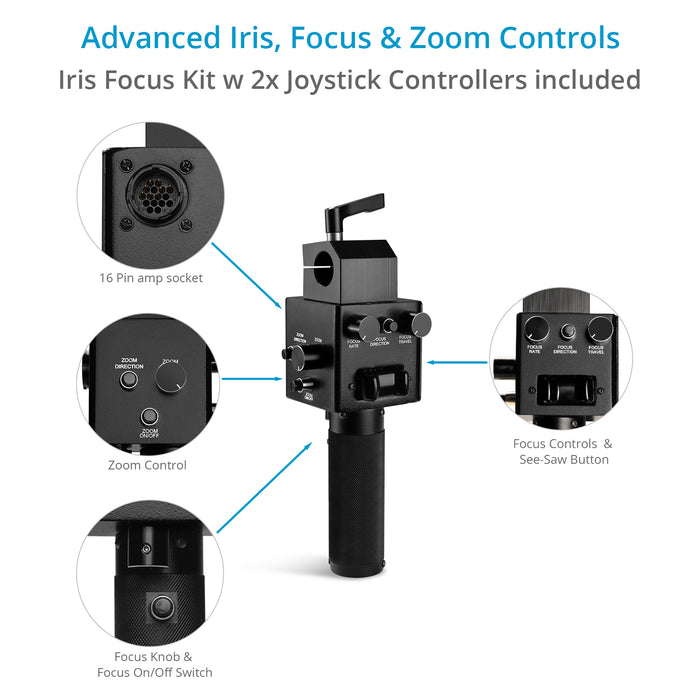

Proaim Boxer HD-2X joystick focus controller

Focus controller

09Focus

Focus control / follow focus system.

The Joystick focus controller lets the operator make precise adjustments to achieve the ideal sharpness and clarity in every shot.

RateRamping control
TravelStops before the lens stops
KnobRotates the servo
  1. 01

    Focus Rate

    It is a ramping control that controls the elapsed time to perform the focus.

  2. 02

    Focus Travel

    Sets the distance the focus servo will rotate and prevents the servo from hitting the lens stops.

  3. 03

    Focus Direction

    The button reverses the focus direction from left to right or vice versa.

  4. 04

    Focus Control Knob

    Rotates the servo motor as per your requirement.

  5. 05

    Focus On/Off Switch

    Turning ON this switch will allow you to control the focus movement via the given control points, whereas turning OFF this switch will completely turn off the focus functions.

Proaim Boxer HD-2X

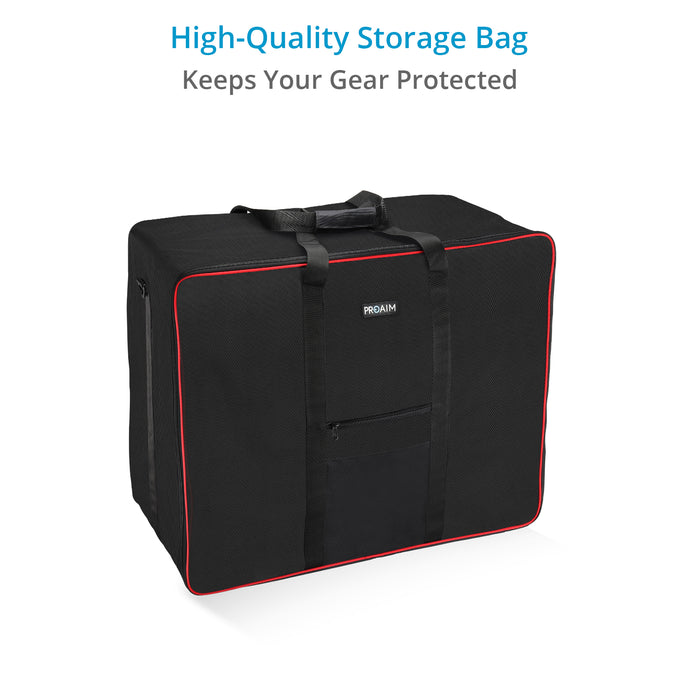

Proaim Boxer HD-2X packed in its carry bag

Carry bag

10Transport

Easy to carry.

The pan-tilt head unit comes securely packed in a high-quality bag, ensuring secure storage and transportation via any medium.

PackedHigh-quality bag
SecureStorage and transport
Any mediumOf transit

11Specifications

Pan tilt head

ConstructionHigh-Grade CNC Aluminum
Load Capacityup to 15kg / 33lb
MountingCamera: ¼"-20 Screw & 3/8"‐16Jib: Jib mounting knobLens Mounting: 8-pin zoom cable connecter (Compatible with Fuji/Canon ENG lenses)
Pan Movement360°
Tilt Movement360°
Minimum SpeedPan/Tilt: 360° in 1 minute 45 seconds (in balanced condition)
Maximum SpeedPan/Tilt: 360° in 5 seconds (in balanced condition)
Motors2 x High Torque Maxon Motors (Coreless DC Motors for 360° Pan‐Tilt)

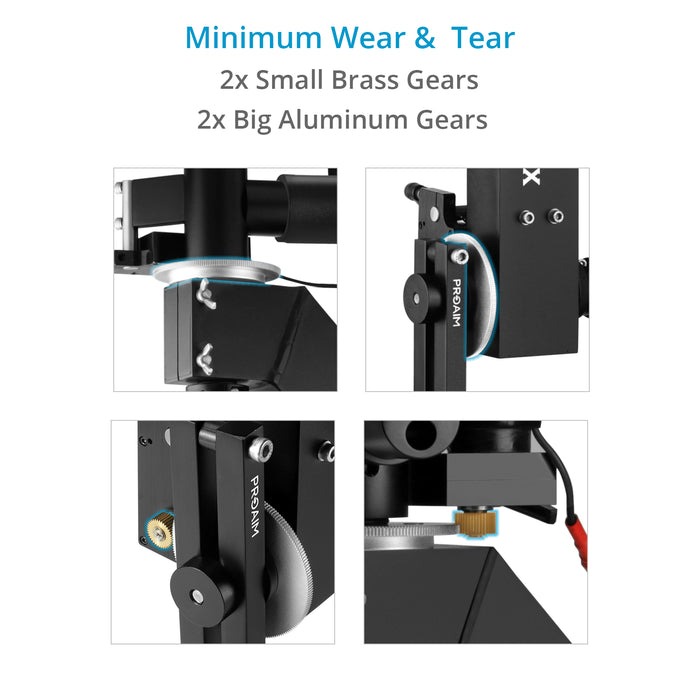

Gears2x Brass Small Gears (Diameter - 20mm)2x Aluminum Big Gear (Diameter - 103mm)
Minimum Height of Head18.5 Inches
Maximum Height of Head24.4 Inches
Power inputOption 1: AC 110‐240VOption 2: Dual V‐mount battery plate (battery not included), Standard 14.8V V mount battery
Main Cable Length13 Meters
Weight of Pan Tilt Head5kg
Weight of Joystick & Zoom controller remote730g & 670g
Weight of Controller Box4kg
Product Weight (Without Packing)19.7kg / 43.4lb
Product Volumetric Weight (with packing)34.95kg / 77.05lb

User manual

Proaim Boxer HD-2X Motorized Pan/Tilt HeadPDF ↓

Joystick controllers

Joystick Controller2-Axis
Clamping Range25mm
Tyco ConnectorsMale & Female Both
Tilt ControlYes
Pan ControlYes
Zoom ControlYes
Iris motor controlYes
Focus motor ControlYes

Dimensions

Proaim Boxer HD-2X dimensions

In the box

  1. 01Proaim Boxer HD-2X Motorized Pan Tilt Head
  2. 02Controller with Battery Box
  3. 03Joystick box
  4. 04Focus & zoom Controller
  5. 05Iris Motor
  6. 06Focus Motor
  7. 07Pan And Tilt Motor
  8. 08Head Connector
  9. 09Universal Adapter
  10. 101x Extra Knobs



  1. 113 x Knobs
  2. 12Belt
  3. 13Ac Power Cable 5mm
  4. 1412ft Long Cable
  5. 1543ft 25cm Long Cable
  6. 16Rod for motor holding
  7. 174 x Wings Nuts
  8. 18MS Check nut
  9. 193x Allen Key
  10. 20Bag Packing
Secure checkoutEvery order
Fast deliveryOn all orders
30-day returnsEasy returns
1-year warrantyOn all products

Q&A

Ask a Question



  • What is the maximum cable run for remote operation?

    The system includes a 42ft (≈13m) long cable, giving operators comfortable distance from the jib or crane during operation.

  • Does the head allow full rotation without cable snagging?

    Yes. It supports continuous 360° pan and tilt movement.

  • Can I fine-tune movement speed and stop behavior?

    Yes. Independent speed and damping controls let you dial in ultra-slow moves and smooth, jerk-free stops.

  • Does it support ENG zoom lenses out of the box?

    Yes. It features built-in compatibility with Canon and Fujinon ENG lenses via the standard 8-pin zoom connector.

  • What kind of motors does the head use ?

    It uses two coreless high-torque DC motors for smooth, quiet movement.

  • Does it have adjustable speed for pan and tilt ?

    Yes, you can adjust pan/tilt speed and direction for precise camera moves.

  • Can the boxer pan tilt head use with the 32ft base ib ?

    Yes, the Proaim Boxer Pan Tilt head (P-BXR-HD-2X) is compatible with the 32ft base jib (P-W5P-Base).
