Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller (Dampening & Speed Control)

Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller (Dampening & Speed Control)

Payload- 15kg / 33lb

Sold out
£3,537.47
£3,537.47 - £3,537.47
£3,537.47
£3,281.45
£3,281.45 - £3,281.45
£3,281.45
SKU : JB-SCSR-02

AT A GLANCE

Payload
Up to 15kg
Jib Length
17 ft Telescopic Arm
Includes
17ft Powermatic Scissor Jib
Speed Controller Remote
15Ac Adapter
Travel Speed
1.4" / 36mm per second
Compatible With
Professional Camera Rigs
3-Axis Camera Gimbals
Best For
Motorized Telescopic Jib Shots
Smooth Push-In / Pull-Out Camera Moves

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

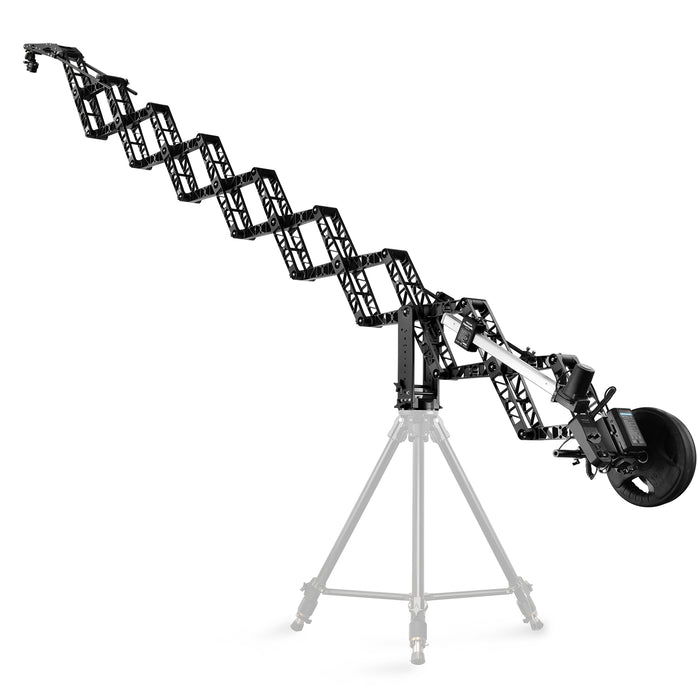

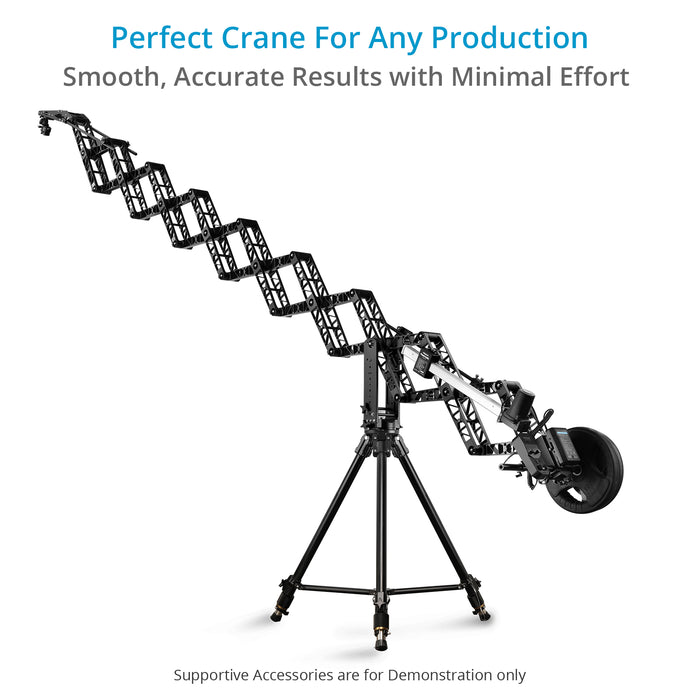

Scissor Pro 17ftTelescopic camera jib crane

The next step in the evolution of the camera jib.

Quickly moves in and out of a shot. Maneuvers into inaccessible areas, smoothly and silently. A 17ft telescopic scissor arm on 70 high-speed steel bearings, with a remote controller for speed, damping and direction, brings Technocrane-style moves to tight indoor spaces and on-location shoots.

Reach

17ft5.2 mTotal length extended.

Payload

15kg33 lbMaximum payload.

Bearings

70High-speed steelTotal no. of high-speed steel bearings.

Noise

<55dBIP44 motorMotor noise.

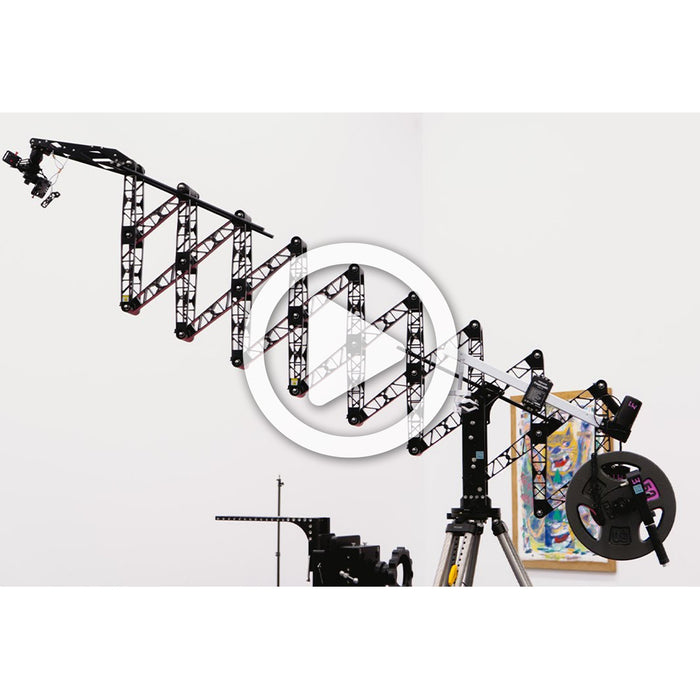

Scissor Pro 17ft

Proaim Powermatic Scissor jib extended over a rooftop TV set, with an operator at the counterweights

On location

01Scissor arm

Thoughtful engineering.

The Proaim Powermatic Scissor telescopic camera crane lets you easily capture creative shots usually done with high-end and expensive Technocranes. Extending the scissor arm puts the camera right where you need it.

The flexible motion allows the arm to open 17′ out and then retract back in. It is perfect for tight indoor spaces as well as on-location shoots, and it even fits into a private vehicle.

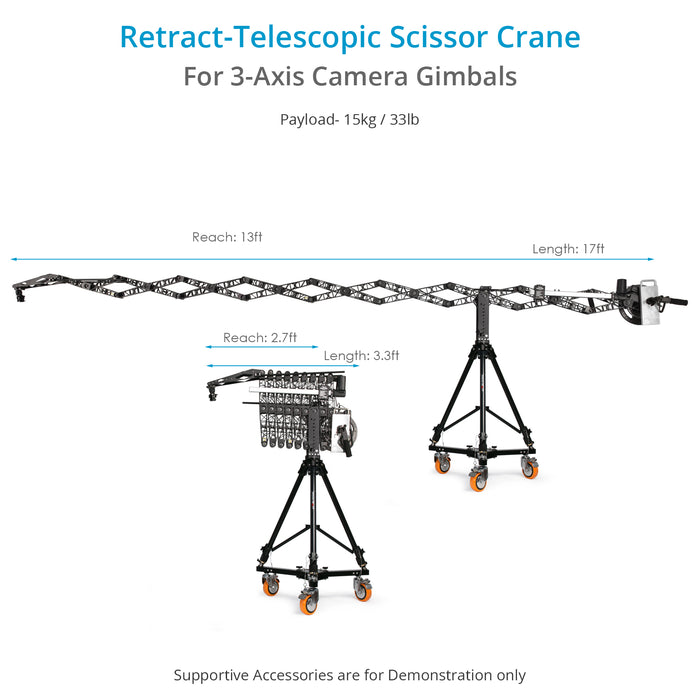

17ft / 5.2mTotal length extended
3.3ftTotal length closed
17.4ft / 5.3mExtended height from ground
CLOSED3.3 ft EXTENDED17 ft FORWARD · OPENS IN 12 S17 FT · FULLY EXTENDEDREVERSE · RETRACTS IN 11 S 3.3 FT · CLOSED

Shown in real time at maximum speed · slowest: 25 s out, 21 s back■ Camera on a 3-axis gimbal · up to 15kg / 33lb

Scissor Pro 17ft

Close-up of the Proaim Powermatic Scissor arm links and bearing joints with a gimbal at the tip, in an event hall

Scissor arm

02Crane frame

Durable & strong.

The high-grade aluminum crane frame is lightweight and durable enough to hold 3-axis camera gimbals, with a maximum payload of 15kg / 33lb.

The 70 special high-speed steel bearings ensure outstanding durability and strength while providing smooth, soundless movement every time you extend or retract.

15kg/33lbPayload
70High-speed steel bearings
<55dBNoise

Scissor Pro 17ft

Operator behind the Proaim Powermatic Scissor jib with an LCD monitor on the crane, the arm extended into a forest

Monitor arm

03Operation

Effortless operation.

The Powermatic Scissor allows you to achieve fluid movements of extreme precision without any difficulty.

YesCrane pan lock
YesCrane tilt lock
Left/rightMonitor arm
  1. 01

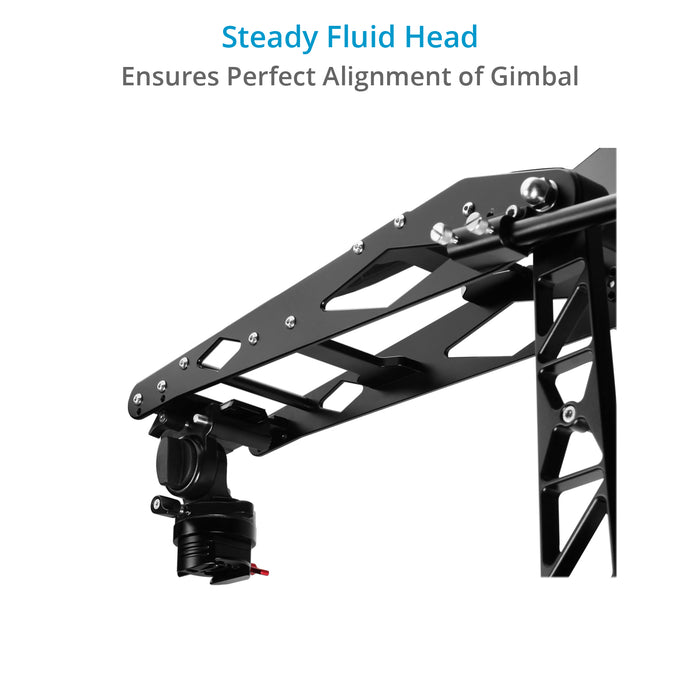

    Steady fluid head

    Ensures perfect alignment of your 3-axis gimbal on the scissor crane.

  2. 02

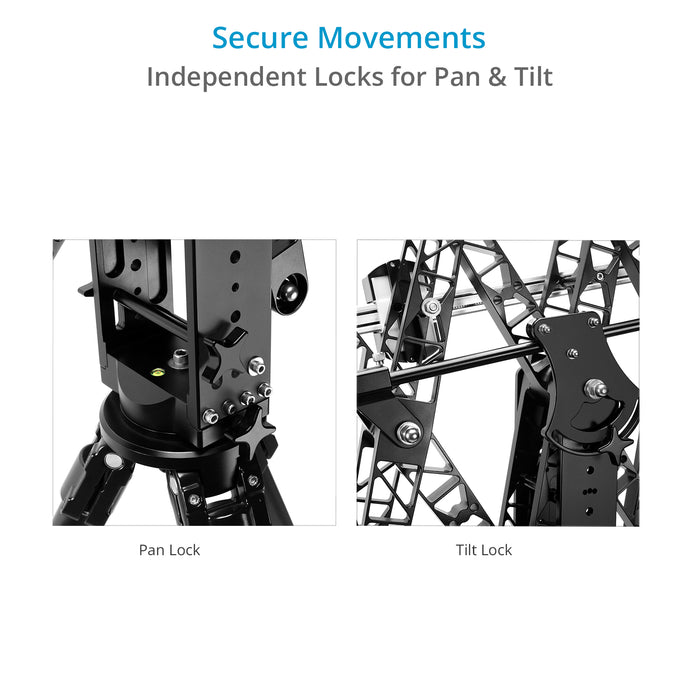

    Tilt lock

    Allows you to fix the jib’s tilt angle to get linear tracking shots.

  3. 03

    Pan lock

    Enables locking the jib’s pan movement for achieving high/low angle shots.

  4. 04

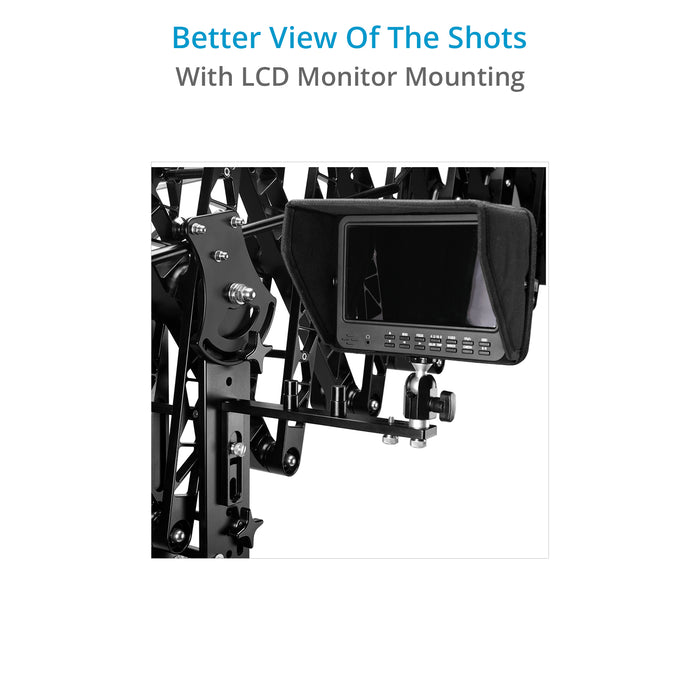

    LCD mounting arm

    Helps in attaching an LCD monitor for better viewing of shots; the arm can be mounted left/right as per your requirement.

TILT LOCKED LINEAR TRACKING SHOT ARM ANGLE FIXED · CAMERA MOVES IN A STRAIGHT LINE PAN LOCKED ↑ HIGH ANGLE↓ LOW ANGLE HIGH & LOW ANGLE SHOTS PAN FIXED · THE JIB ONLY MOVES UP AND DOWN

Crane pan lock · crane tilt lock■ Lock engaged   - - Camera path

Scissor Pro 17ft

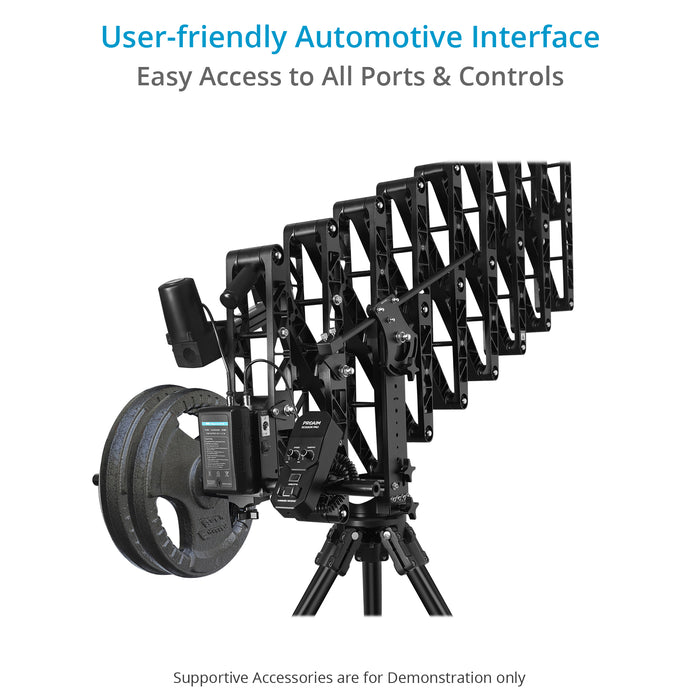

Proaim Powermatic Scissor jib with the remote controller and V-mount controller box mounted on the crane

Controller kit

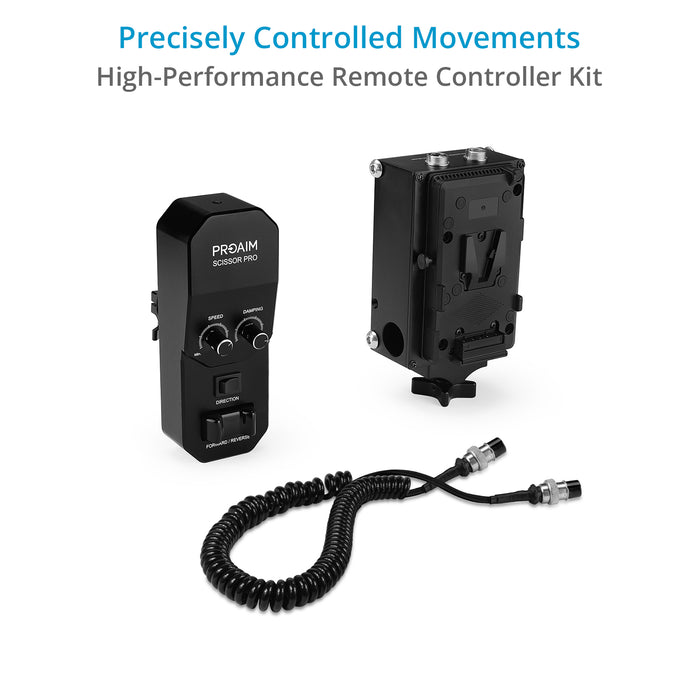

04Controller kit

Fully-featured controller kit.

The new and improved Remote Controller Kit lets you control the speed and damping of your jib with enhanced precision.

It includes a Remote Control and a Controller Box with a V-Mount battery plate to power and drive the jib arm smoothly, linked by the included spiral cable.

V-mountBattery plate
SpiralCable
2.4kgController kit (5.29lb)
  1. 01

    Retraction / expansion

    The forward/reverse buttons let you conveniently push out and pull in the jib arm.

  2. 02

    Speed controller

    The speed dial, as the name suggests, lets you control the speed intensity of the jib movements.

  3. 03

    Damping adjustment

    The damping adjustment dial lets you control the level of damping and facilitates smooth, stabilized movements as the jib expands and retracts.

  4. 04

    Direction control

    The direction button lets you lock the direction in which you want your jib to move: forward or reverse.

Speed range · full travel

Opens outForward

12–25 secMax – min speed

Pulls back inReverse

11–21 secMax – min speed

051015202530 s
DAMPING LOWABRUPT START & STOP DAMPING HIGHSMOOTH, STABILIZED

Damping adjustment dial · same move, two settings■ Smooth, stabilized movement as the jib expands & retracts

Scissor Pro 17ft

Proaim Powermatic Scissor jib closed with a gimbal and camera, beside blue flight cases outdoors

Closed · Flight case

05Transport

Simplified transport.

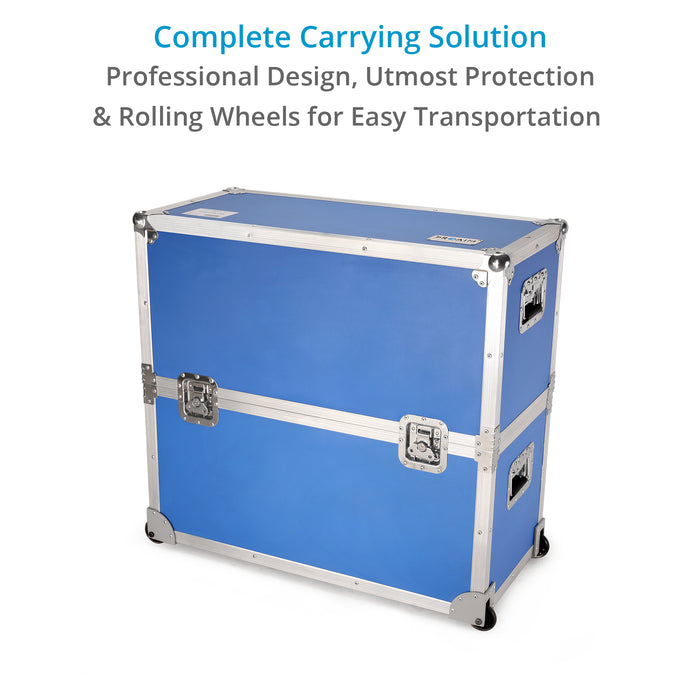

The complete crane system fits in a flight case for easy storage. This storage case is easy to carry with you to different sets and locations.

Flight caseIncluded
33kg/73lbWeight of scissor jib
3.3ftTotal length closed

06Specifications

Scissor crane

ConstructionHigh-Grade CNC Aluminum
Payload15kg / 33lb
Total No. of High-Speed Steel Bearings70
Total Length Extended17feet / 5.2m
Total Length Closed3.3feet
Extended Height from Ground17.4feet / 5.3m
Closed Height from Ground6.3feet
Crane Pan LockYes
Crane Tilt LockYes
Self‐balance Weight (Extended/Collapsed)24kg / 53lb
Maximum SpeedForward Speed of Scissor Jib in Second:- 12 secReverse Speed of Scissor Jib in Second:- 11 sec
Minimum SpeedForward Speed of Scissor Jib in Second:- 25 secReverse Speed of Scissor Jib in Second:- 21 sec
Power SourceV‐Mount Battery (Not Included)
Battery RuntimeDepend on battery
Weight of Scissor Jib33kg / 73lb
Product Weight (Without Packing)41kg / 90.38lb
Product Volumetric Weight (With Packing)73.26kg / 161.51lb

Motor

IP44 ProtectionCertified
Rated Voltage12V -15V DC
Rated Power60W
Nominal Current10A DC
Maximum Thrust Force1000N
Maximum Pulling Force1000N
Travelling Speed36mm/sec
Noise<55dB
VibrationNot Noticeable

Remote controller kit

ConstructionHigh Grade Aluminum
Battery PlateV‐mount
Compatible Power SourceOption:‐ 15V AC AdapterV‐Mount Battery (Not Included)
Weight of Remote Controller Kit2.4kg / 5.29lb

In the box

  1. 0117ft Powermatic Scissor Jib with Gimbal Fluid Head
  2. 023 x Guide Rods
  3. 03Weight Rod
  4. 04Hub Locking knob
  5. 05Monitor Arm
  6. 06Speed Controller Remote
  7. 07Controller Spiral cable
  8. 082 x Weight Closers
  9. 09Ronin Controller Bracket
  10. 1015Ac Adapter
  11. 11Controller Box with Battery plate
  12. 12HDMI Male to Male Wire
  13. 13BNC Wire
  14. 142 x Fuse
  15. 15Female to Female Connector
  16. 16Female to Female Connector
  17. 17Spanner (Size: 13mm)
  18. 1850 Piece Cable Tie
  19. 19Flight Case

Includes the Scissor Jib Crane and New Remote Controller only. You can purchase the compatible tripod and dolly via the links below: TP-GVTY-01 · DL-ANCR-02. The payload capacity of the tripod stand should be: On Maximum Height: 180 kg / 395 lb · On Minimum Height: 250 kg / 550 lb.

User manual

Proaim Powermatic Scissor 17ft Telescopic Camera Jib CranePDF ↓

07Around the world

Scissor jib around the world.

Proaim Powermatic Scissor jib raised high over a film crew in a sunny field

Outdoor film set

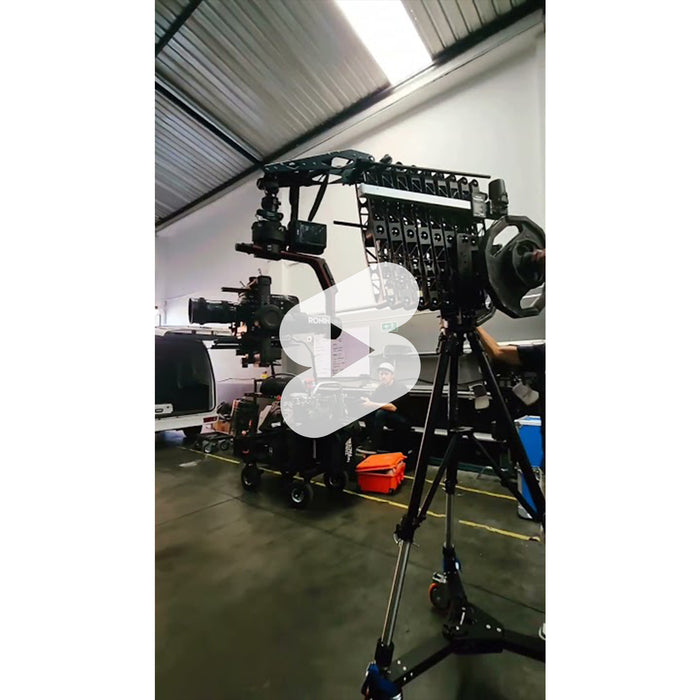

Operator balancing the Proaim Powermatic Scissor jib on its dolly in a loft set

Indoor set

Proaim Powermatic Scissor jib on a dolly track over a period-costume cast in an old town square

Period film · Old town

Guaranteed Fast DeliveryFor all orders
Quick and EfficientCustomer service
Easy ReturnsUp to 30 days
1-Year WarrantyOn All Products

Q&A

Ask a Question



  • What’s the lowest height the setup can reach, and how much vertical movement is available at different extension distances?

    The lowest height of the Proaim Powermatic Scissor Pro (17ft) primarily depends on your tripod configuration. Typically, the jib arm operates at around 6.3 ft from the ground, but with the tilt mechanism and underslung gimbal mounting, the camera can be positioned down to ground level for low-angle shots.

    In terms of vertical movement, the available up-and-down travel increases as the scissor arm is extended. At full extension (17 ft), the system can achieve a maximum height of approximately 17.4 ft. Simply put, greater extension provides a wider vertical movement range, with the maximum vertical travel available at full reach.

  • What's the best way to attach Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro?

    The Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro can attach with a standard NATO rail. It should be possible to mount this handle controller with a NATO rail attachment and an appropriate clamp, such as a Manfrotto Super Clamp.

  • Can speed and damping be adjusted while operating?

    Yes, the upgraded remote controller allows speed control, damping adjustment, direction lock, and expansion/retraction control for precise camera moves.

  • Is the movement smooth and quiet during operation?

    Yes, the crane uses high-speed 70 steel bearings that ensure smooth, stable, and low-noise movement, especially at controlled speeds.

  • How far does the scissor jb extend?

    The Scissor Jib extends up to 17 feet, allowing smooth push-in and pull-out shots.

  • Is there a bazooka that can carry this jib?

    Yes, you can use the BZ-286-00 Bazooka, which supports up to 200kg.
    To use the scissor crane with the bazooka, you will also need the AP-MTCL-SCSR and MA-293-00 accessories.

  • Does "flat base" mean it mounts to a Mitchell base with a locating flange/pin? Can it be mounted to Ronford HD legs?

    No, this jib can only mount on flat base tripod but if your tripod has the Mitchell base than you can convert it in flat base with the help of AP-MTCL-SCSR adapter as it helps to convert Mitchell base to flat base. Here is the link for your reference:
    https://www.proaim.com/products/proaim-mitchel-base-for-powermatic-scissor-jib

  • Is the pan axis motorized?

    No, the pan axis is manual and not motorized.

  • Can the jib arm be locked so it doesn't fall over when letting go?

    Yes, Jib arm has a pan and tilt lock mechanism.

  • How much load capacity does the tripod need to have?

    The payload capacity of the tripod stand should be:
    On Maximum Height: 180 kg / 395 lb
    On Minimum Height: 250 kg / 550 lb

  • Is there a circular track accessory?

    No, currently we do not have a curved track accessory for Proaim Powermatic Scissor 17' Telescopic Jib Arm.

  • What is the weight of the crane in the case?

    33kg.

  • Does Proaim Powermatic Scissor Telescopic Camera Jib Crane with New Remote Controller include the tripod and dolly as well?

    The Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller (Dampening & Speed Control) JB-SCSR-02 includes the Scissor Jib Crane and New Remote Controller only.

    You can purchase the compatible tripod and dolly via below link:

    TP-GVTY-01: https://proaim.co.uk/products/proaim-gravity-professional-video-tripod-stand

    DL-ANCR-02: https://www.proaim.com/products/proaim-anchor-heavy-duty-studio-camera-tripod-dolly

  • I purchase a scissor crane. Do you have an instructional video on how to put it together?

    Below is the video of how to assemble Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane JB-SCSR-00:
    https://www.youtube.com/watch?v=cbURj6fWOK8
