What kind of battery I need to operate it?

You need 12V battery to operate this head.

Which motors are used in this head?

High torque, coreless 12V DC motors are used in this head.

How many circle it can complete?

This pan tilt head can take two complete 360 degree circles.

Is the camera plate height adjustable?

Yes, you can adjust the height of camera plate.

Does the joystick come with handle to clamp on jib crane?

Yes, the joystick control box comes with a handle to clamp it on a jib crane.

What is the gear material?

Small gears are made of brass and bigger gears are made of aluminum.

Do you provide cable for the battery?

Yes, we provide 3 meter long cable for using with the battery.

Can I purchase this head with the compatible tripod?

Yes, you can purchase this head with tripod and tripod adapter.

Will it mount on fluid head?

No, It will not mount on fluid head.

Will it fit to 100mm bowl tripod?

No, It will not fit to bowl tripod.

Will the fluid head fit to this head?

Yes, you can mount fluid head on the head plate.

How the head can be mounted?

This pan tilt head has square plate with four screws mounting at corners.

Will it work with canon 550d camera?

Yes, it will work with canon 550d camera.

Is it safe to power the Proaim Sr. Pan Tilt Head ( PT-SR) with 14.4 volts v-mount battery?

We do not recommend a 14.4 Volt V-mount Battery for Proaim Sr. Pan Tilt Head because with 14.4 Volt V-mount Battery the RPM (Rotation Per Minute) specifications will be changed which eventually decreases the life of the Motor.We suggest to use 12 Volt capacity battery with this Head.

Can the Sr. Pan Tilt Head be moved by hand if i don't want to use the motor?

Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

Could it be controlled by a computer?

The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

What is the warranty length on all parts of the head?

The Proaim Senior 2-Axis Pan/Tilt Head with 12V Joystick Control includes a 1-year manufacturer warranty.

Can this be mounted on a 75mm half bowl?

No, this cannot be mounted on a 75mm half bowl.

Is the slowest rotation speed 6 degrees per second or a rotation every 2 min? Official website currently has both.

The slowest rotation speed is 6� per second, which equals a full 360° rotation in roughly 2 minutes.

Does this have lanc support?

The Proaim Senior Pan-Tilt head does not LANC Support.

Can a bmpcc6k fit on this pan/tilt head?

Yes, the Proaim Senior 2-Axis Pan/Tilt Head with 12V Joystick Control accommodates the Blackmagic Design Pocket Cinema Camera 6K.

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

Name: Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb
Brand: Proaim.uk
SKU: PT-SR
Price: 706.42 GBP
Availability: InStock
Rating: 5.0 (4 reviews)

2-Axis Motorized Head with 12V Joystick Controller

£0.00 - £0.00

£0.00

£706.42

£706.42 - £706.42

£706.42

SKU : PT-SR

Qty

AT A GLANCE

Payload

7.5kg/16.5lb

Compatible With

Camera Jib Crane

Speed

Minimum: 6°/sec
Maximum: 51°/sec

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

User Manual | ? FAQ | ▶ Watch Videos

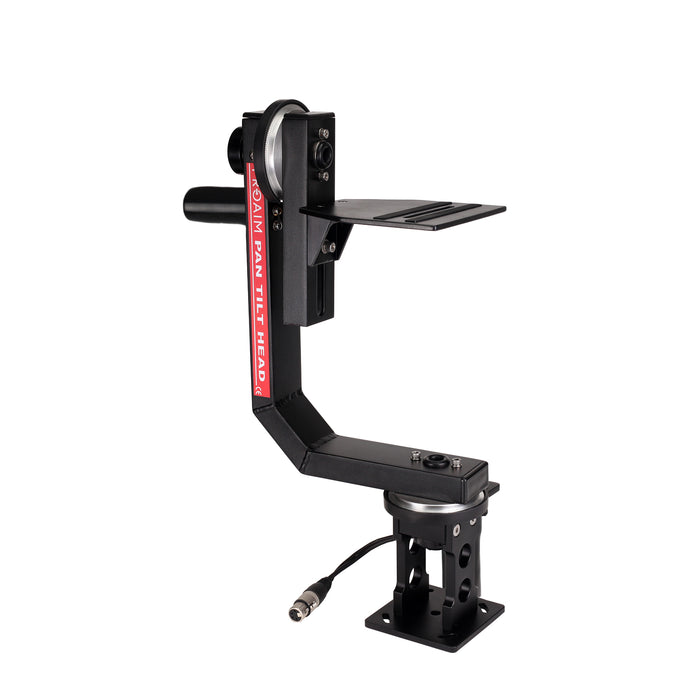

Sr. Pan Tilt Head2-axis motorized head with 12V joystick controller

Smart remote head gives you the freedom to be more creative.

The Proaim Sr. Pan-Tilt Head with Joystick Control remotely controls your camera when it’s mounted on a tripod, jib or crane: 360° pan and tilt, variable speeds from 6° to 51° per second, and damping, dead spot and direction controls on the 12V joystick, for film and video cameras weighing up to 7.5 kg / 16.5 lb.

7.5 kgPayload (16.5 lb)

360°Pan & tilt, 2-axis

7 secFastest 360° turn

15 mControl cable (49 ft)

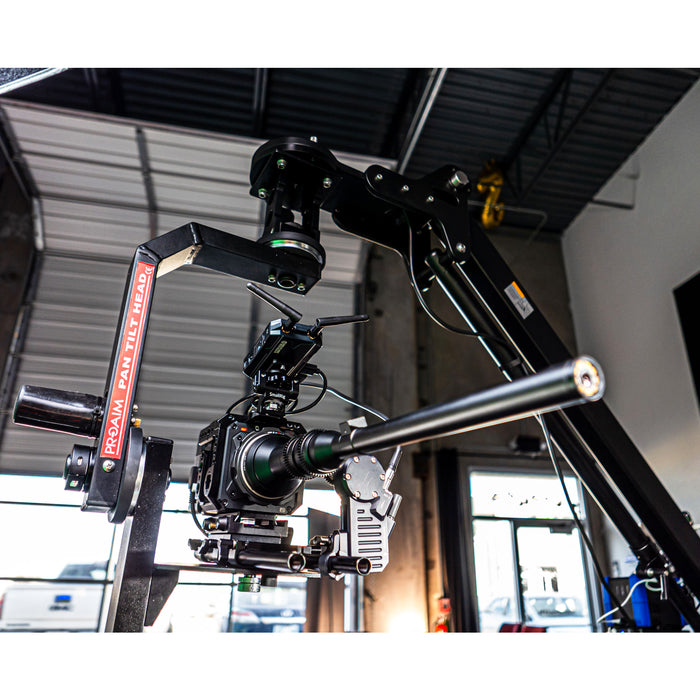

Proaim Sr. Pan Tilt Head underslung on a jib arm, on location

01Remote head

Versatile remote head.

The Proaim Sr. Pan-Tilt Head remotely controls your camera on a tripod, jib or crane, running on 12 VDC from a battery pack or the included AC power supply.

Robust yet light, with a universal mounting base and camera plate for film and video cameras up to 7.5 kg / 16.5 lb, it is a breeze to set up on virtually any jib.

7.5 kgFilm & video cameras (16.5 lb)

12 VDCBattery pack or AC power supply

UniversalMounting base & camera plate

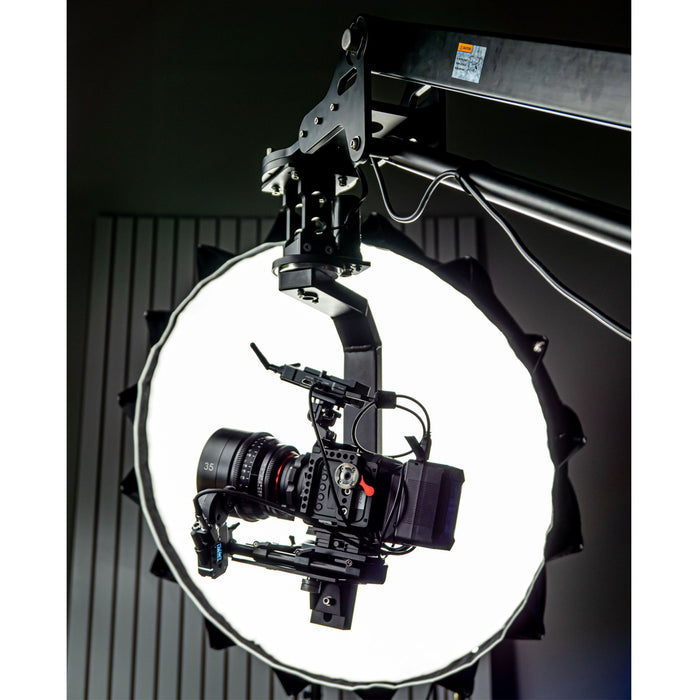

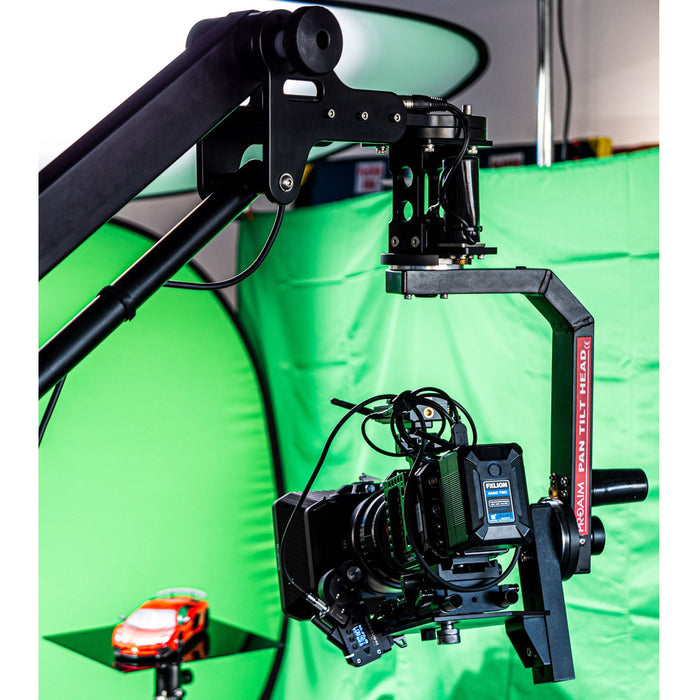

Proaim Sr. Pan Tilt Head underslung on a jib arm, carrying a cinema camera

02Performance

High performance with advanced features.

The 2-axis head ensures perfect camera balance and smooth camerawork, mounted vertically or underslung, with 360° pan and tilt.

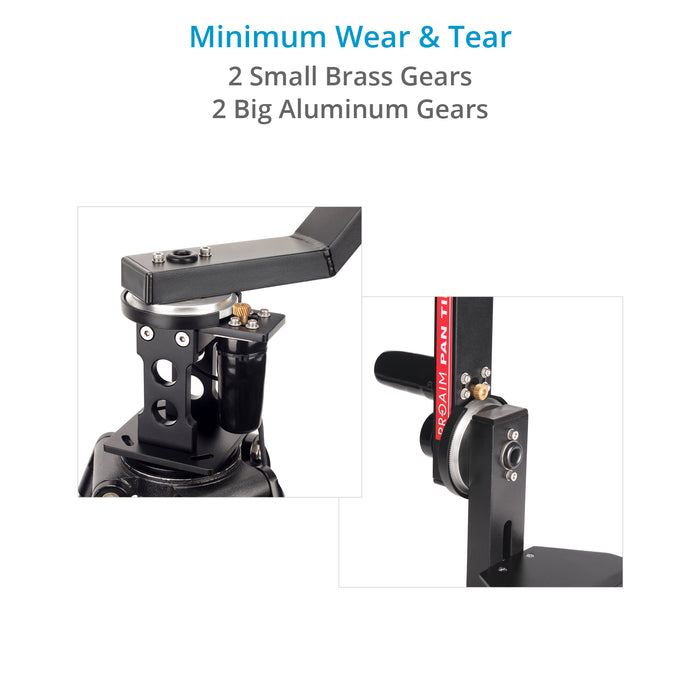

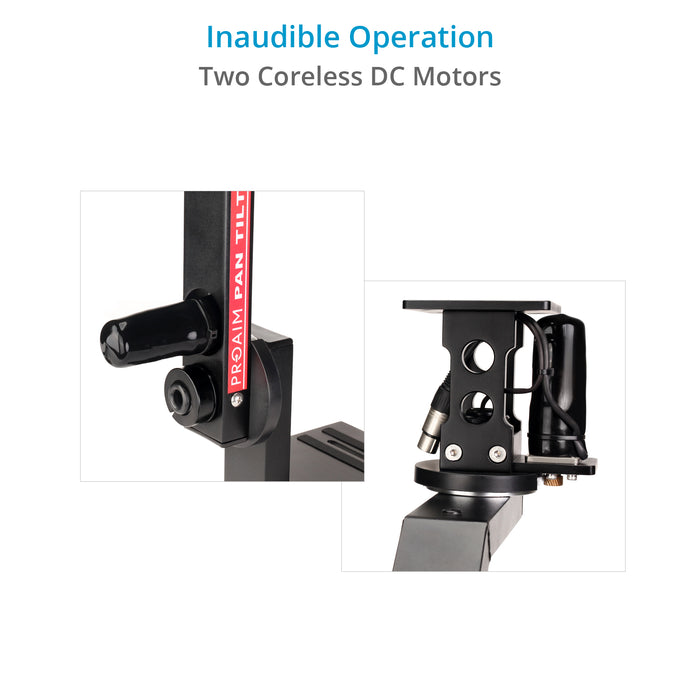

Two coreless motors and backlash-free brass gears work precisely and quietly with minimal wear and tear, and the motor drive disengages for balancing.

360°Pan & tilt

2Coreless motors

BrassBacklash-free gears

Mounted vertically

Mounted underslung

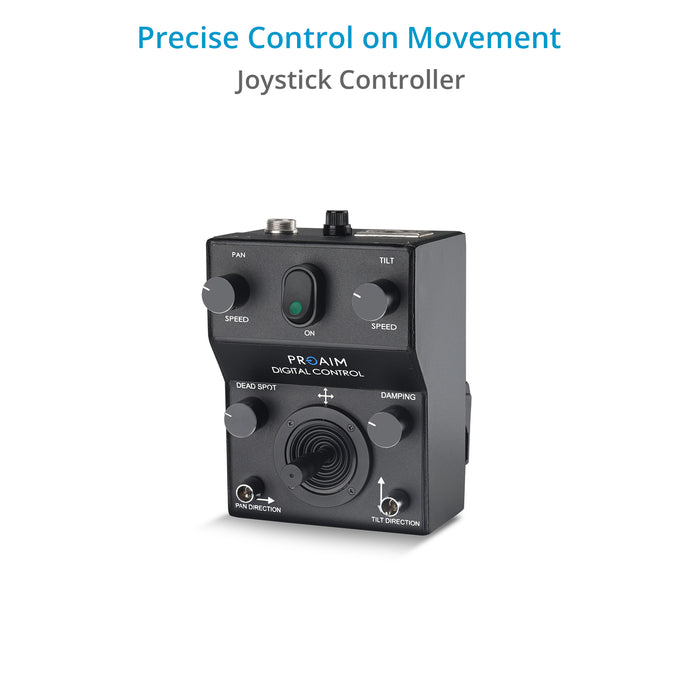

Proaim Digital Control joystick controller — pan and tilt speed knobs, dead spot and damping knobs, joystick, pan and tilt direction switches

03Operation

Easy operation.

Three controls on the joystick controller: damping, dead spot and pan/tilt direction.

DampingSmooth endings

Dead spotCentre band of the joystick

ReversalPan & tilt direction switch

01
Damping control
The damping control knob prevents the head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
02
Dead spot control
The dead spot control determines the centre band of the joystick where no motion will occur, and ensures no crossover to the other axis when not wanted. You can adjust the joystick when it is not centred by rotating this knob clockwise: if you observe the head moving without deflecting the joystick, it will be necessary to adjust the centring. To perform best when reversing the head, the dead spot knob should be at 30 to 40 percent.
03
Pan / tilt direction
You can reverse the panning and tilting direction as and when required by using the switch, and you can also use the damping function at the time of reversal. So the best way to reverse the pan tilt head is by using this reversal switch.

Damping control

Smooth endings, no jerk.

Turn the damping knob clockwise for more damping. It also works when you reverse direction.

Dead spot control

A centre band with no motion.

If the head moves without touching the joystick, turn the dead spot knob clockwise to re-centre it.

04Speed range

One full turn, from 7 seconds to 2 minutes.

Time for one 360° turn at the highest and the slowest speed setting, from the specification table.

Pan & tiltOne 360° turn

7 secondsHighest speed · 51°/sec

2 minutesSlowest speed · 6°/sec

Highest speedSlowest speed

05Build

Built to last.

Precision CNC machining, rigorous parts inspection and individual unit testing ensure A-grade quality for a lifetime, while technological advancements keep the unit light, smooth and easy to operate.

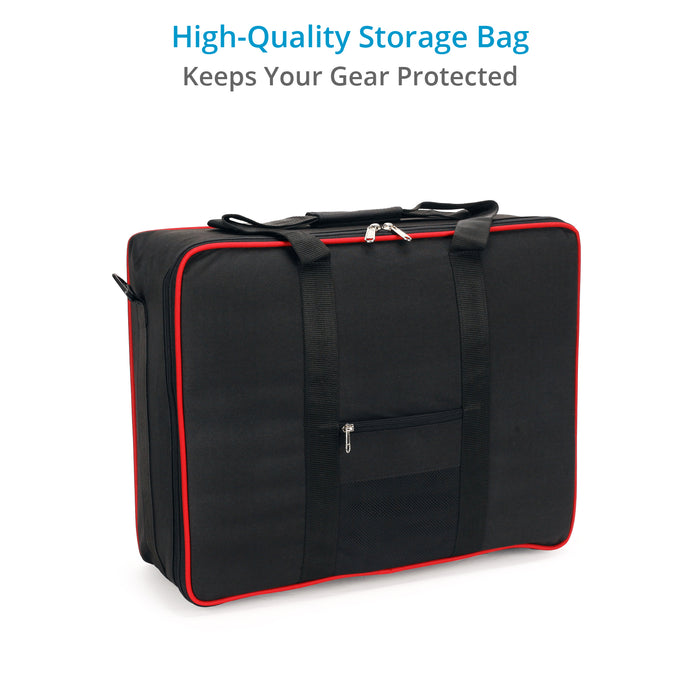

The high-quality carrying bag with custom-fit foam protects it for storage and transport by air or land.

CNCPrecision machining

TestedEvery unit, individually

Custom-fitFoam carrying bag

06Specifications

Sr. Pan Tilt Head

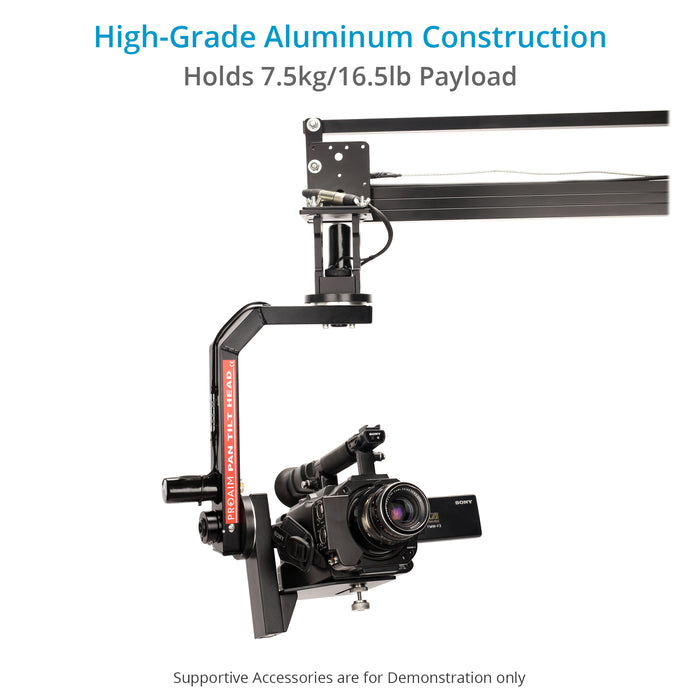

Material of Construction	High-grade CNC Aluminum
Load Capacity	7.5 kg / 16.5 lb
Pan & Tilt	Movement: 360°
Speed	Minimum: 6°/secMaximum: 51°/secCovers 360° at Slowest Speed in : 2 minutesCovers 360° at Highest Speed in : 7 seconds
Motors	Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
Gears	2 Small: ⌀ 13.5mm (Brass)2 Large: ⌀ 88mm (Aluminum)
Adjustments	Minimum Height of Head: 18.5" / 46.99 cmMaximum Height of Head: 26" / 66 cm
Weight	Pan/Tilt Head: 3 kg / 6.6 lbJoystick: 800 gram / 28.22 ozBag Dimensions: 50 x 35 x 19 cm

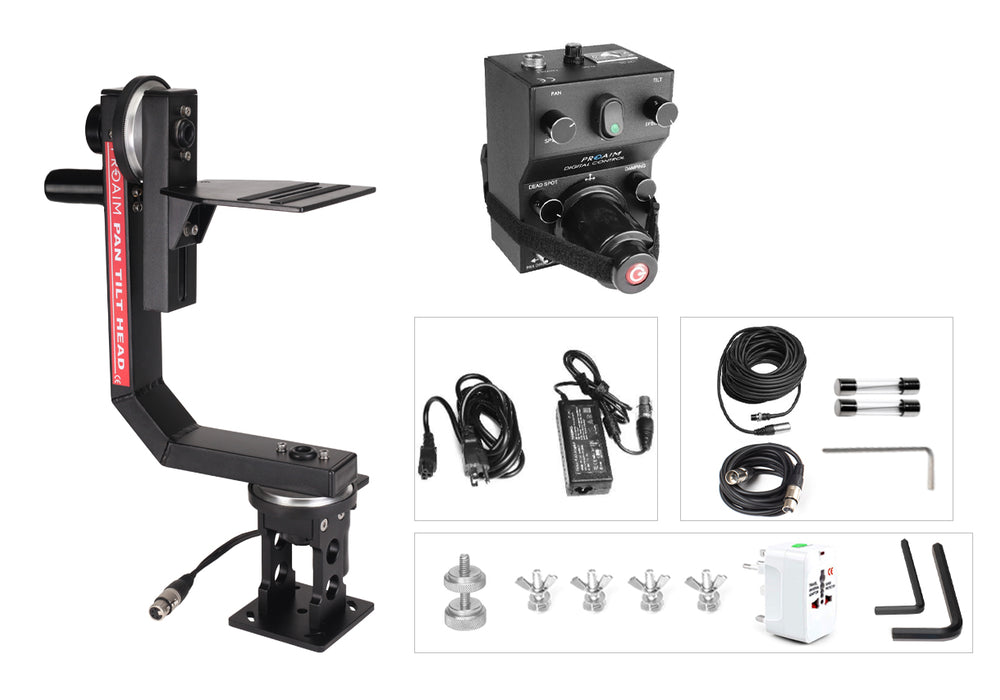

In the box

01Proaim Sr. Pan & Tilt Camera Motorized Head
02Joystick Control
0315 meter/49foot long Control Cable
043 meter long 4pin XLR cable (for using 12VDC Battery Packs)
051/4"-Camera Mounting Screw
06Worldwide Universal Adapter
0712V AC Adapter
08Storage Case with Custom Fit Packing

Joystick controller, power & cables

Joystick Controller – Axis	2
Joystick Controller – Connectors	2x 4-Pin XLR Male Connectors
Pan/Tilt Direction	Yes
Upgraded with	Damping Knob
AC Adapter input	AC 100-240V ; Output 12V DC-2A
Cable Length	15 meter (Can be extended up to 50 meter)
Cable Connector	4-Pin XLR
Battery Cable	3 meter Long
Package Weight	7.7 kg / 16.97 lb
Box Dimensions (LxWxH)	22.8 x 14.9 x 7.4" / 58 x 38 x 19 cm

Dimensions

User manual

Proaim™ Sr. Pan Tilt Head with 12V Joystick ControlPDF ↓

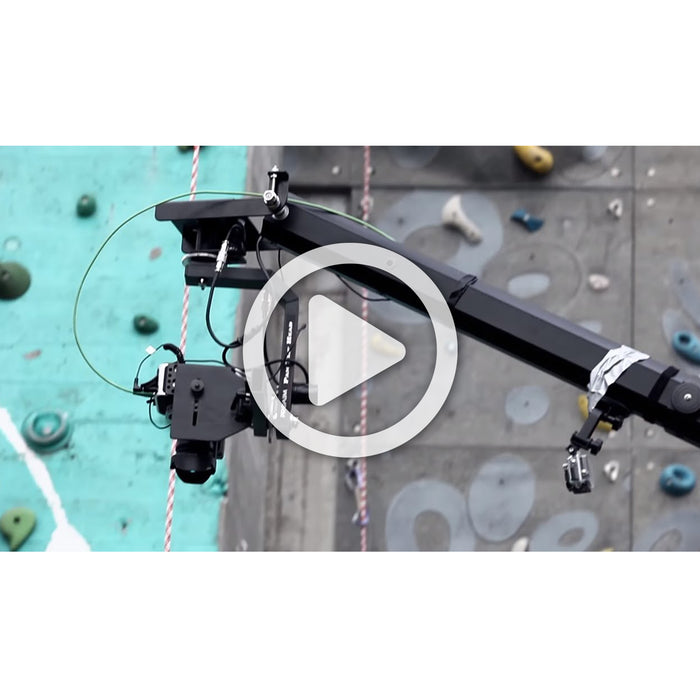

07In action

See the Sr. Pan Tilt Head in action.

Guaranteed Fast DeliveryFor all orders

Quick and EfficientCustomer service

Easy ReturnsUp to 30 days

1-Year WarrantyOn All Products

Q&A

Ask a Question

Can a BMPCC 6k fit on this pan/tilt head?

Yes, the Proaim Senior 2-Axis Pan/Tilt Head with 12V Joystick Control accommodates the Blackmagic Design Pocket Cinema Camera 6K.
Does this have LANC support?

The Proaim Senior Pan-Tilt head does not LANC Support.
Is the slowest rotation speed 6 degrees per second or a rotation every 2 min? Official website currently has both.

The slowest rotation speed is 6° per second, which equals a full 360° rotation in roughly 2 minutes.
Can this be mounted on a 75mm half bowl?

No, this cannot be mounted on a 75mm half bowl.
What is the warranty length on all parts of the head?

The Proaim Senior 2-Axis Pan/Tilt Head with 12V Joystick Control includes a 1-year manufacturer warranty.
Could it be controlled by a computer

The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?

Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
