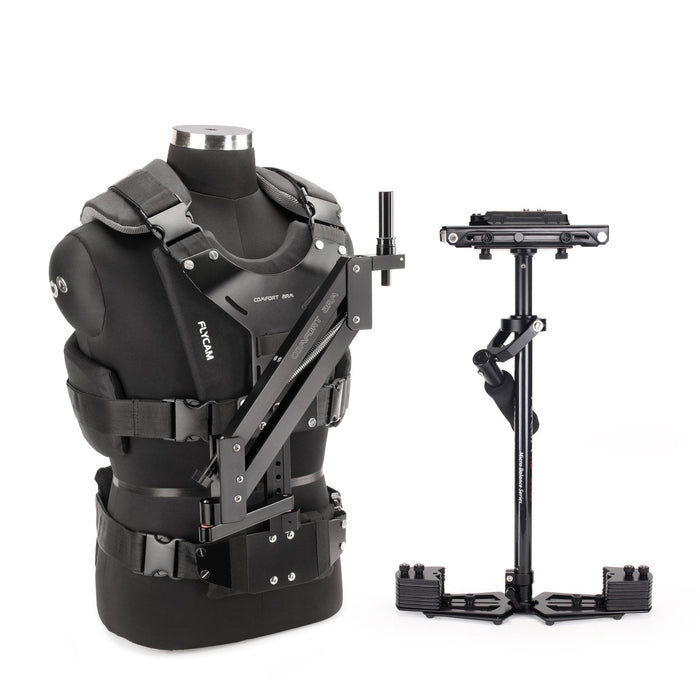

Flycam HD-5000 Camera Steadycam System with Comfort Arm and Vest

Steadycam System with up to 5kg/11lb Payload

Original price £258.01 - Original price £258.01
Original price
£258.01
£258.01 - £258.01
Current price £258.01
SKU : CMFT-HD5

AT A GLANCE


Payload
up to 5 kg
Mounting Screw Size
¼”-20 & 3/8"-16 Screws
Compatible With
Camera Gimbals and Handheld Stabilization Setups
Best For
Moving Shots
Vibration Reduction
Handheld Stabilization
Dynamic Camera Movement

Secure checkout | Fast delivery | 30-day returns | 1-year warranty




Flycam HD-5000Stabilizer + arm & vest

Smooth handheld shots, on any terrain.

Designed for smooth, comfortable movement, the Flycam HD-5000 is a complete camera stabilization system that pairs a lightweight stabilizer with an adjustable vest and a shock-absorbing Comfort Arm. It supports DSLR and video cameras weighing up to 5 kg / 11 lb. The precisely designed handheld camera stabilizer uses a micro-balance mechanism for smooth, gliding movements, while its high-grade CNC aluminum construction keeps it durable yet lightweight, built to operate reliably for years to come.

5 kgCamera payload
55–73 cmStabilizer length
28–60 inchVest waist size
1.4 kgStabilizer weight

Flycam HD-5000

Operator flying the Flycam HD-5000 on the Comfort Arm and Vest, following a subject

Arm + vest / On location

01Stabilizer

Easy, precise micro-balancing.

The stabilizer's camera platform has fine-tuning knobs for front-to-back and side-to-side camera adjustments, allowing quick horizontal balancing. A tool-less telescopic central post lets you adjust the camera's vertical balance, while the adjustable base platform with weight discs achieves perfect dynamic balance. The 3-axis gimbal with ball bearings ensures smooth operation.

Fine-tuning knobsQuick horizontal balance
Telescopic postAdjusts vertical balance
3-axis gimbalBall bearings for smooth operation

Comfort Vest

Operator wearing the Comfort Vest with the Flycam HD-5000, filming a subject walking outdoors

Ergonomic vest / Worn

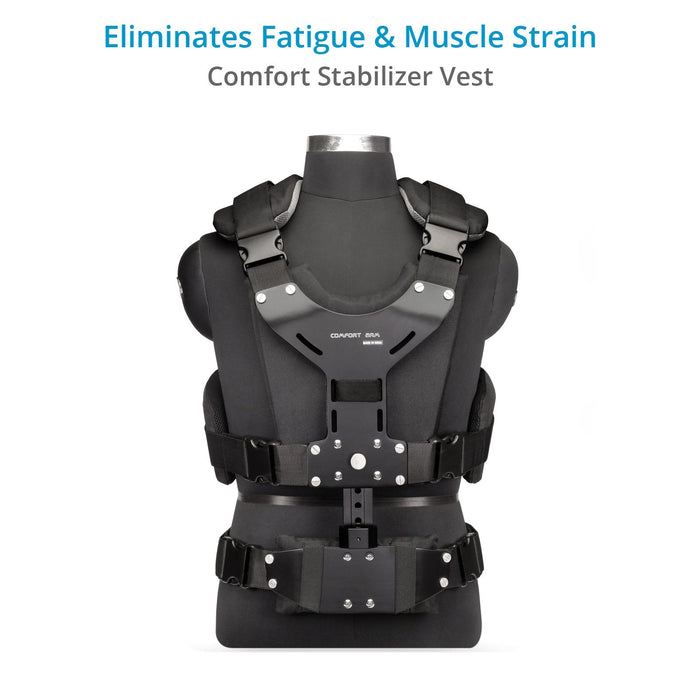

02Comfort Vest

Experience relief with the Comfort Vest.

Made with extremely breathable material, the foam-padded vest provides excellent comfort, a perfect fit, and unrestricted movement. Easy height adjustment and Velcro straps enable a comfortable fit for all body types. A unique and proprietary Arm-to-Vest Connector allows the Support Arm's angle to be adjusted relative to the Support Vest, and push-fit buckles let you quickly remove the vest during short breaks.

BreathableFoam-padded vest
Easy fitHeight adjustment & Velcro straps
Push-fit bucklesQuick removal during breaks

Comfort Arm

Operator with the Flycam HD-5000 on the Comfort Arm and Vest in the city

Spring arm / Walking shot

03Comfort Arm

Naturally smooth shots.

The lightweight, dynamic Comfort Arm absorbs jerks, bumps, and shakes on even the roughest terrain as you walk or run. Designed to carry a payload of up to 5 kg / 11 lb, it optimizes performance throughout its lifting range, while the stainless-steel spring and high-quality bearings deliver ultra-smooth shots when following a subject. The spring tension adjustment knob easily adjusts the tension of the spring depending on the weight of your setup.

Stainless-steel springWith high-quality bearings
Tension knobSet to your setup's weight
Full lifting rangeOptimized performance

Flycam HD-5000

Operator following a subject up stairs with the Flycam HD-5000, Comfort Arm and Vest

Handheld / On the move

04Ease of use

User-friendly design for easy operation.

The Flycam HD-5000 with Comfort Arm & Vest lets you enjoy the freedom of handheld shooting, even when going to extremes like running up and down stairs or travelling over rugged terrain. The foam-cushioned handle offers comfortable operation, while the simple design makes it highly convenient and easy to use. It comes in a foam-padded bag for easy carrying.

Foam handleComfortable operation
Go anywhereStairs & rugged terrain

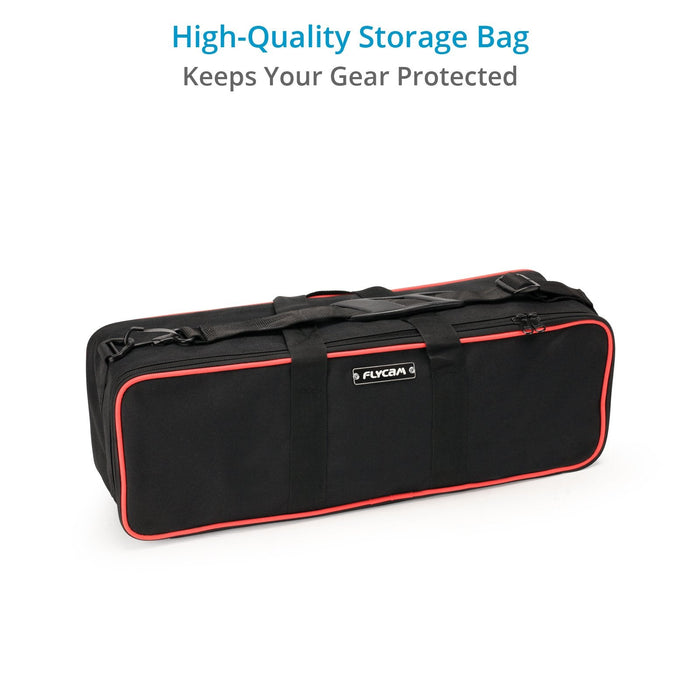

Padded bagEasy to carry around

05Highlights

Details behind the smooth shots.

01

Micro-balance mechanism

Smooth, gliding camera movements.

02

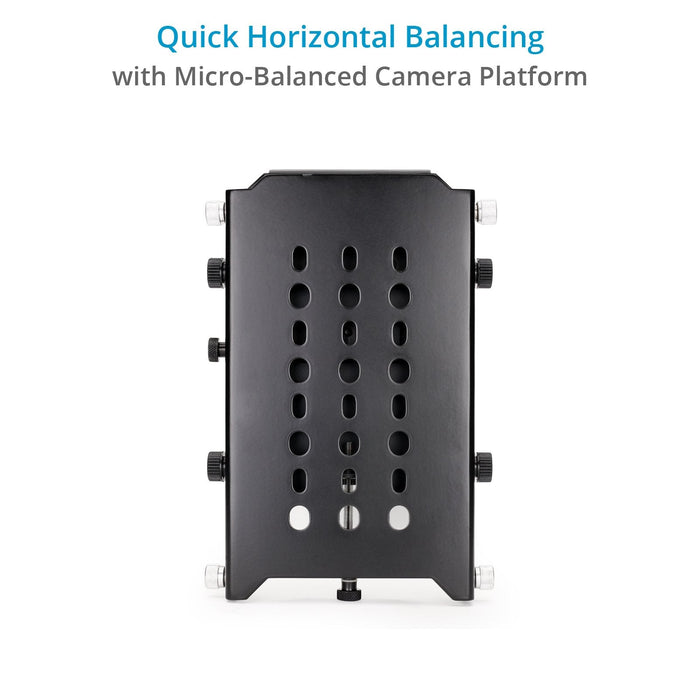

Fine-tuning knobs

Front-to-back and side-to-side adjustments for quick horizontal balancing.

03

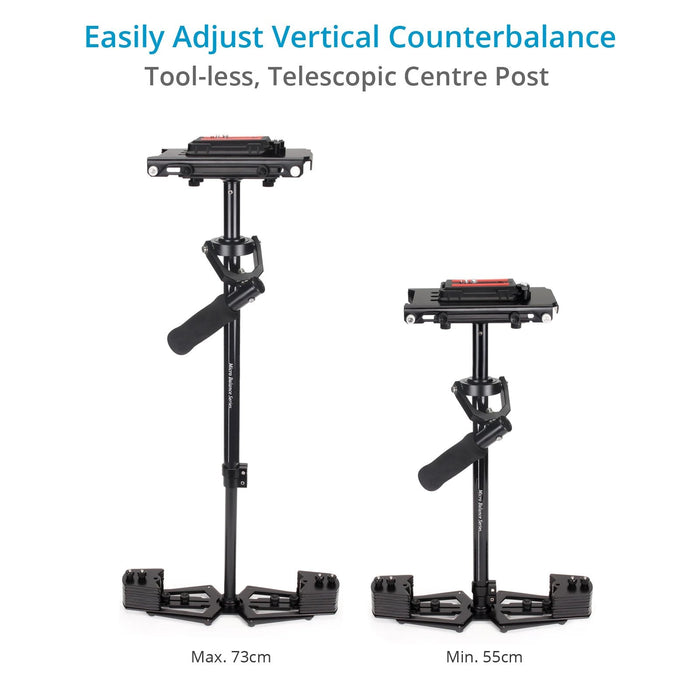

No-tools central post

Telescopic design to adjust the camera's vertical balance.

04

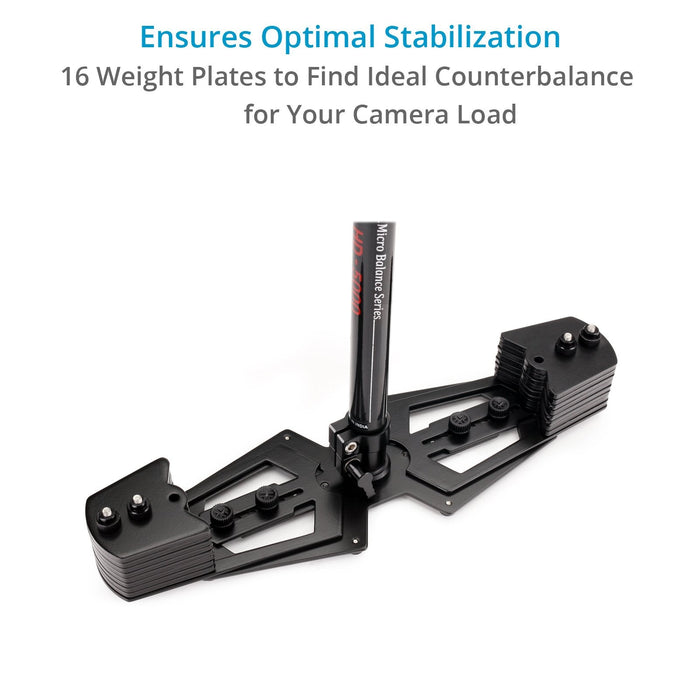

Adjustable base platform

Weight discs on the base platform achieve perfect dynamic balance.

05

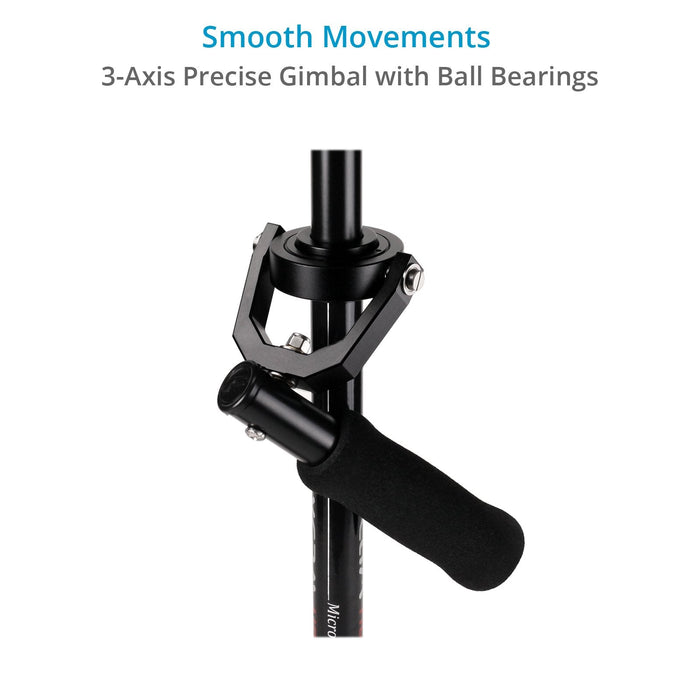

3-axis gimbal

Ball bearings for smooth operation, with a foam-cushioned handle.

06

Shock-absorbing arm

Absorbs jerks, bumps and shakes as you walk or run.

06Specifications

HD-5000 Stabilizer

ConstructionHigh-grade CNC Aluminum
Weighing capacity1-5 kg / 2.2-11 lb
Length extendable · Maximum73cm
Length extendable · Minimum55cm
Head Plate Dimensions · Head Plate7 x 4.9 x .75 inches
Head Plate Dimensions · Mid plate4.5 x 4 inches
Head Plate Dimensions · Bottom plate4.5 x 4.5 inches
Base Platform Dimensions4 x 10 inches
Number of weight plates16 pcs
Weight of single weight plate95 gram
Flycam weight without weight plate1.4 kg / 3.08 lb

Comfort Vest

ConstructionCNC Aluminum & Synthetic Fabric
Waist Size28 to 60"
Weight1.67 kg / 3.6 lb

Unico Quick Release

MaterialHigh-Quality Plastic
ColorMatt Black
Dimension13.5*7.2*2cm
Self Weight135g (0.30 lbs)
Mounting Screw Size¼”-20 & 3/8"-16 Screws

Comfort Arm

ConstructionHigh-Grade CNC Aluminum
Weighing Capacityup to 5 kg / 11 lb
Extension Arms · Small18 cm
Extension Arms · Big32 cm
Spring Length11.5cm
Pin Diameter1.9 cm, 1.3 cm
Weight1.39 kg / 3.5 lb

In the box

  1. 01Flycam HD-5000 Handheld Steadycam Stabilizer
  2. 02Comfort arm & vest (CMFT-AV)
  3. 03
    Unico Quick Release (FLCM-UQR)
  4. 04

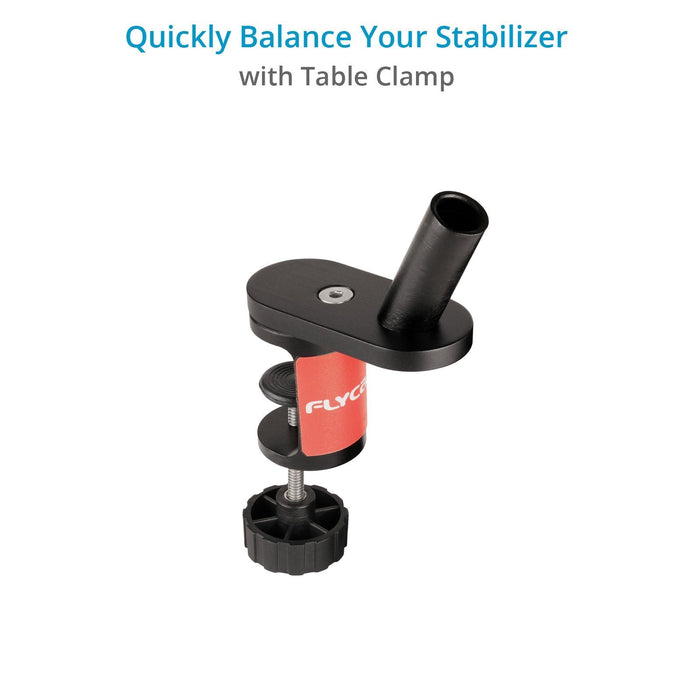

    Table Clamp (TC-030-00)
  5. 05Custom Fit Bag Packing
Guaranteed fast deliveryFor all orders
Quick and efficientCustomer service
Easy returnsUp to 30 days
1-year warrantyOn all products



  • can you explain the difference to the flycam 5000 please?

    The key difference in both the models is the design. The HD-5000 has micro balancing feature as compared to Flycam 5000.

  • What are the size of the buckles?

    The Flycam Comfort Arm & Vest is not compatible with the DJI RSC2. However, you can mount this on the Flycam, Galaxy Arm & Vest GLXY-AV with the help of Flycam Gimbal Adapter FLCM-GA.

  • Can i put a dslr on it? is it possible to mount one on there? saw a video and they were using larger cameras but curious on the usage of a dslr?

    Yes, you can put a DSLR on it, you can put a variety of cameras as this kit will perfectly work for cameras and gear up to 5kg.

  • Just to make sure. this comes with the vest & the fly cam stabilizer?

    Yes, It comes with an Arm, Vest and Stabilizer as well as free accessories like an arm Brace and a table clamp.

  • What is the diameter of the main shaft?

    The main shaft (spool adapter) has the diameter of 18.5mm which can easily adapt the stabilizers with the handle's inner diameter of 19mm. We provide a bush to add onto it to make it 21.5mm so that it can adapt to the handle's diameter of 22mm.

  • Does this stabilizer come with the counterweight?

    Yes, this stabilizer comes with counter weight plates i.e. 8 weights for each side.

  • Does it come with a protector bag?

    Yes, this Flycam HD-5000 includes the foam packaging with bag.

  • What's the maximum weight capacity?

    This Flycam HD-5000 can take the cameras weighing upto - 5kg / 11lbs.

  • If my camera plus accessories are overweight, what options do I have? Can I add more counter weights?

    HD-5000 can bear upto 11lbs. You can add more counter weights for total weight upto 12lbs only. If the weight of your setup is more than 12lbs, we suggest you to purchase Flycam Redking for perfect balance as it can bear weight upto 7 kg/15.4 lbs

  • What is the weight of HD-5000?

    The weight of HD-5000 with weight plate is approx. 2.9 kg

  • What is the warranty?

    We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.

  • What are the minimum and maximum chest and waist sizes the vest will fit?

    The Vest will fit to the sizes as follows :
    Minimum Chest Size : 38 inches
    Minimum Waist Size : 28 inches
    Maximum Chest Size : 52 inches
    Maximum Waist Size : 60 inches

  • Do the vest and arm help with stabilization?

    Yes it does help, however the most important part of stabilization is first balancing the flycam initially. That would mean placing all items that will be used on the day of shooting (ie, Monitor, Battery, Camera, Lens, Wires, additional mounts, etc) for proper accuracy in the balancing process. It will take some time to correctly balance, but once you have the corret balance of the stabilizer, the arm and vest will be extremely helpful in the final stabilization.

  • Does this work with the ag af 100 or blackmagic cameras?

    Yes, it very sturdy. It will perfectly work for cameras and gear up to 5kg. It does take considerable time and practice to learn to Fly but the vest and arm will help with fatigue and getting steady shots. The build quality is surprisingly good.

  • Can this hold a Red Epic or panasonic ag-hvx200?

    Yes, it very sturdy. It will perfectly work for cameras and gear up to 5kg.

  • Will this work with a glidecam 4000 and hd series?

    Yes, it will perfectly work with your glidecam stabilizer. But this kit does come with it's own stabilizer.

  • What is the shipping weight of this kit? it does not include table clamp right? thanks!

    The shipping weight is around 25lbs or 13kg. It does come with a table clamp and will work for cameras and gear up to 5kg.

  • Does the vest have a carrying case too?

    No, The vest doesn't come in a carry case. You will only receive the Flycam HD-5000 and Comfort arm in a foam packed carrying case.

  • Is it compatible with the arm and vest?

    Yes it is compatible with the Arm & Vest. There are three options for Arm & vest for this camera stabilizer i.e.
    i)Comfort Arm & Vest : Flycam Comfort Arm & Vest Camera Stabilization System
    ii)Galaxy Arm & Vest : Flycam Galaxy Steadycam Arm & Steadycam Vest
    iii) Vista-II Arm and Vest - Flycam Vista-II Stabilizing Arm & Vest

  • Can I mount LCD Monitor with HD-5000?

    Yes, you can mount the LCD monitor onto the weight plate of Flycam HD-5000. You need to remove the weights from one side to which you want to mount the LCD monitor.

  • Will the flycam hd-5000 handheld video stabilizer work with a glidecam arm brace or do I have to purchase the flycam arm brace?

    Yes, the Flycam HD-5000 Stabilizer will work with glidecam arm brace.

  • How long can I use the stabilizer before I get tired? Do I need the Arm & Vest with this?

    This Flycam HD-5000 camera stabilizer weighs only 2.9kgs and so can be holded easily for long time but for more comfort you can use it with Arm Support and Body vest. Following are the options for it :
    i)Arm Brace : Flycam Arm Brace support
    ii)Body Pod : FLYCAM Body Pod
    iii)Comfort Arm & Vest : Flycam Comfort Arm & Vest Camera Stabilization System
    iv)Galaxy Arm & Vest : Flycam Galaxy Arm & Vest
    v) Vista-II Arm and Vest - Flycam Vista-II Stabilizing Arm & Vest

  • What is the difference between the HD-5000 and Flycam 5000?

    The key difference in both the models is the design. The HD-5000 has micro balancing feature as compared to Flycam 5000. The HD-5000 includes Unico Quick release plate and Table clamp as free accessories, where as Flycam 5000 includes Unico Quick release plate , Table clamp and Flycam Yoko as free accessories.

  • Is it returnable for a full refund if it doesn't meet my expectations upon delivery?

    Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

  • What are the size of the buckles?

    The buckles of the Flycam Comfort Arm & Vest are 2" Plastic clip buckles.

  • Is this compatible with the dji rsc2?

    The Flycam Comfort Arm & Vest is not compatible with the DJI RSC2. However, you can mount this on the Flycam, Galaxy Arm & Vest GLXY-AV with the help of Flycam Gimbal Adapter FLCM-GA.
